Isogen ProXima 2500-T Gel Documentation System

The Isogen ProXima 2500-T is a compact and versatile imaging system (gel documentation system) specifically designed for molecular biology work, such as capturing DNA and protein gels. The system is known for its small footprint and user-friendly interface via a built-in touchscreen.

Technical Specifications
According to information from Biosave and Isogen Life Science, the ProXima 2500-T features:
Camera: A 14-bit CCD camera with a resolution of 1.8 megapixels.
Interface: The “T” model is equipped with an integrated touchscreen, but can also be controlled via a PC.

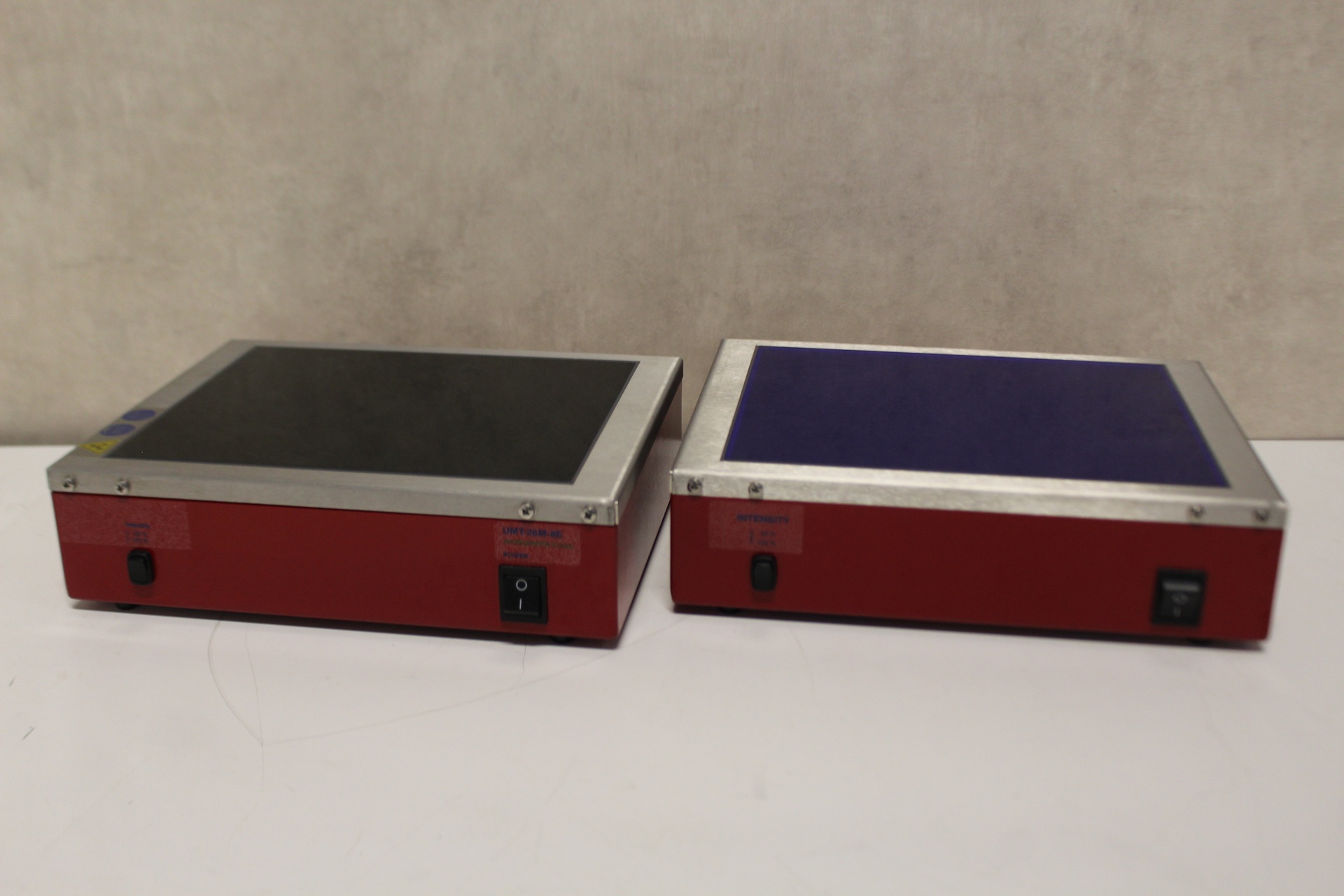

Illumination: Standard with Epi-white light and various transillumination options (UV/Cyan LED).
Field of View: A large imaging area of ​​21 x 26 cm.
Compact Design: The housing is only 38 cm high, saving space on the lab bench and not obstructing the view in the laboratory. Height: 380 mm
Width: 330 mm
Depth: 450 mm
Weight: 15 kg

Functions and Use
Image Optimization: The system uses hardware and software binning to increase sensitivity.
Positioning: Includes a patented image positioning and optical slant correction tool, eliminating the need to manually align samples precisely.
Applications: Suitable for 1D DNA and protein gels stained with a wide range of dyes, including ethidium bromide, SYBR Green, and Coomassie Blue.
Safety: The ergonomic door slides upward, providing direct access to the transilluminator and minimizing contact with toxic substances.
