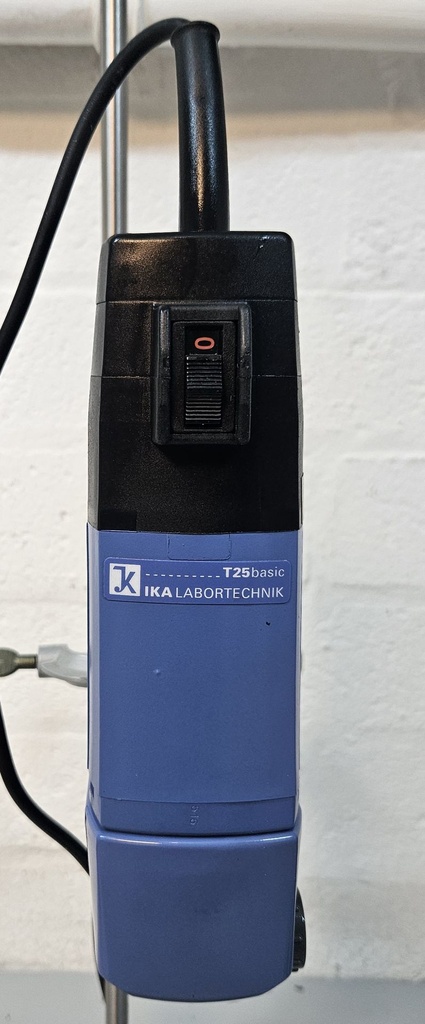

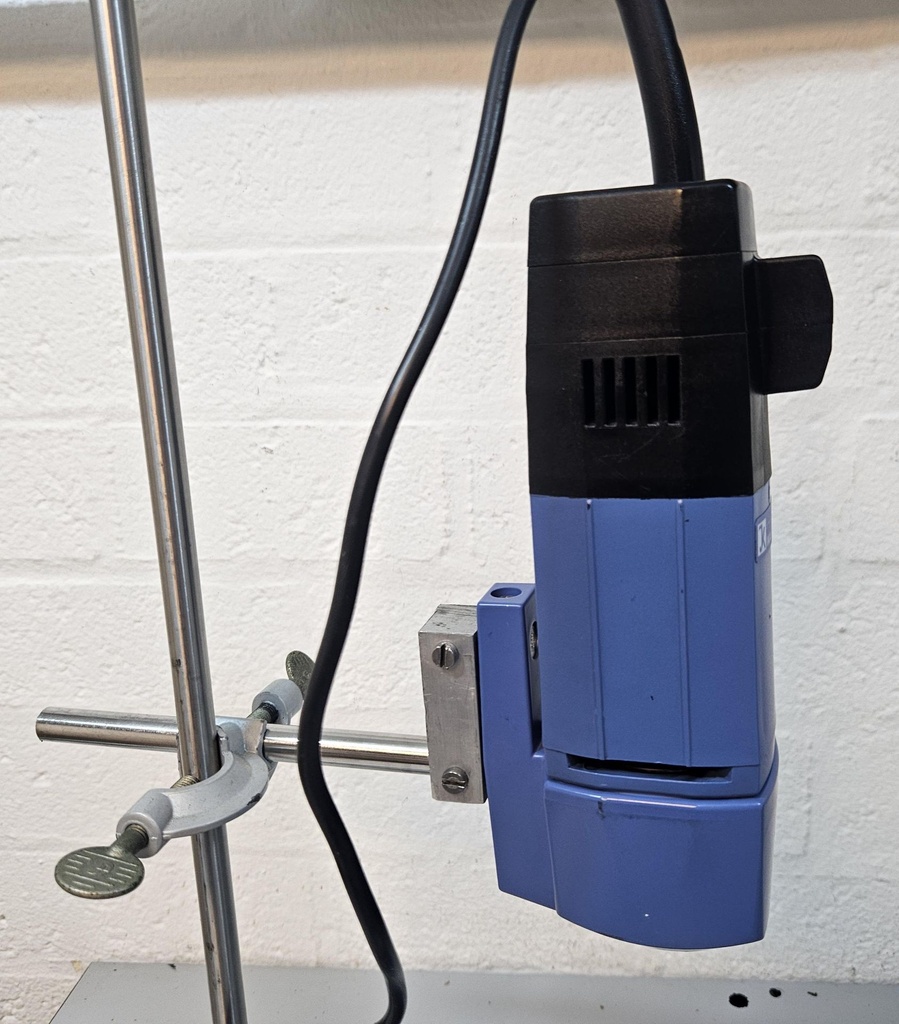

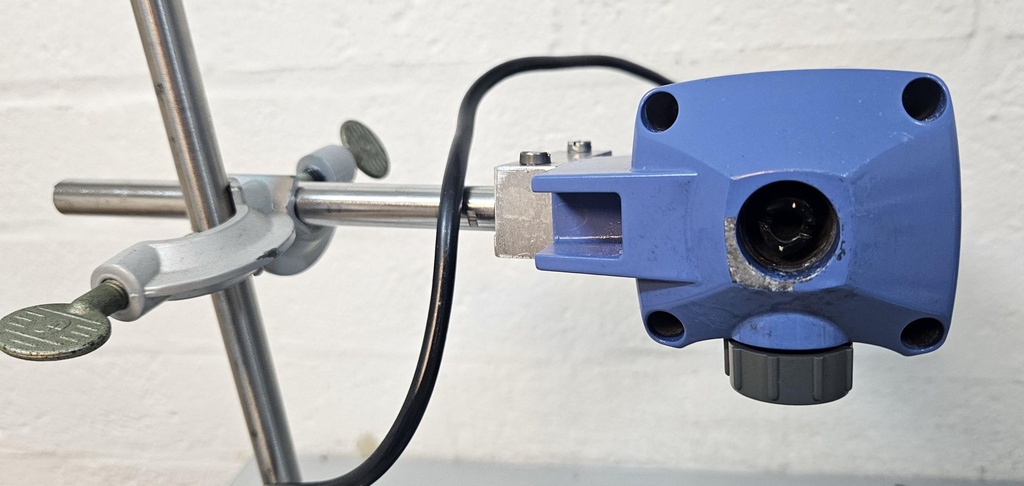

IKA T25 Basic Ultra Turrax

The IKA T25 Basic ULTRA-TURRAX® is a robust laboratory homogenizer designed for homogenizing, dispersing, emulsifying, and suspending liquid and semi-solid samples. Thanks to the continuously adjustable speed from 8,000 to 24,000 rpm, the drive delivers high shear force for fast and reproducible sample processing. The T25 Basic is suitable for use with the IKA S25 dispersion elements and is widely used in chemical, pharmaceutical, biotechnology, and food laboratories. The compact design and simple operation make the device suitable for both routine analyses and research work. Technical specifications

Model: IKA T25 Basic ULTRA-TURRAX® drive
Type: Laboratory homogenizer / dispersion drive
Speed ​​range: 8,000–24,000 rpm
Speed ​​control: Continuously adjustable
Speed ​​display: Analog scale
Motor power (input): 500 W
Motor power (output): 300 W
Processing volume (H₂O): 1–2,000 ml (depending on dispersion element)
Maximum viscosity: 5,000 mPa·s
Process: Batch processing
Permissible duty cycle: 100% (continuous operation)
Noise level (without dispersion element): approx. 72 dB(A)
Compatible dispersion elements: IKA S25 series
Dimensions (W × D × H): 65 × 80 × 240 mm
Support arm: Ø 13 × 160 mm
Weight: approx. 2.5 kg
Power supply: 220–240 V, 50/60 Hz
Protection class: IP20
Permissible ambient temperature: 5–40 °C
Permissible relative humidity: Max. 80%
