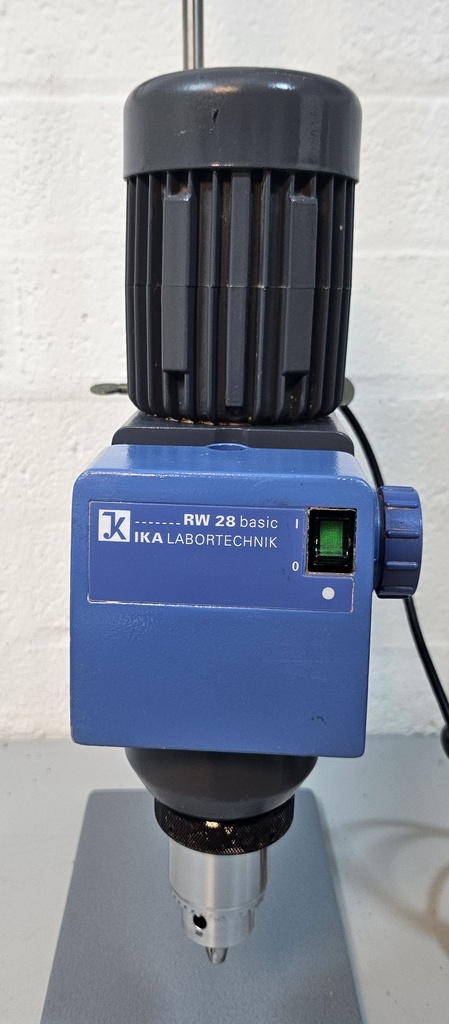

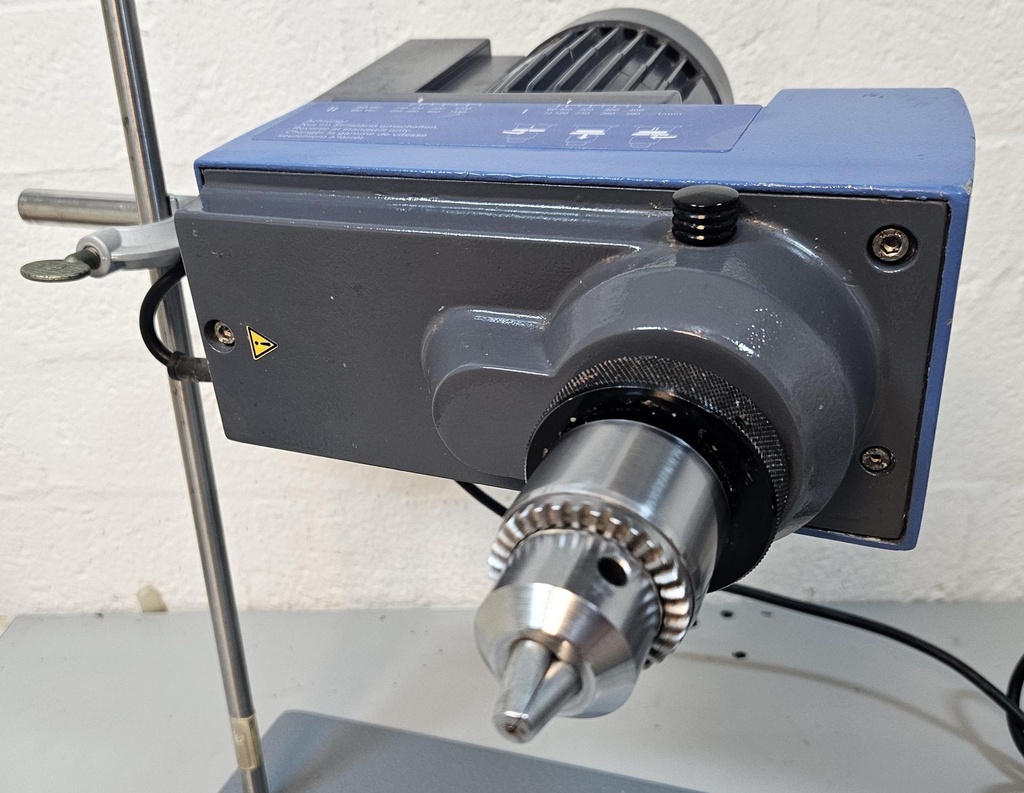

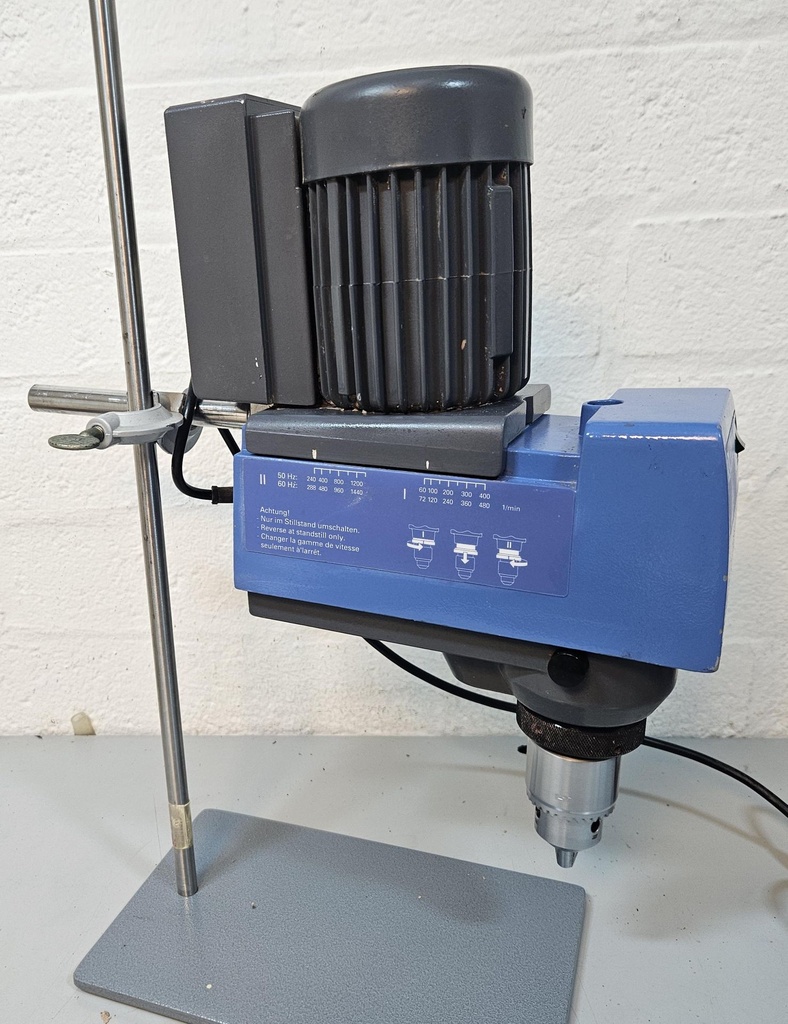

IKA RW28 Basic Overhead Stirrer

IKA RW 28 Top Stirrer with H270 cross-socket

Powerful, mechanical stirrer for highly viscous media for volumes up to 80 l (H2O). The stirrer is suitable for intensive mixing of samples in laboratories and pilot plants. The stirrer is equipped with motor overheating protection via a temperature limiter. Stepless speed control in two speed ranges

Insertable stirring rod

Overload protection

Robust, ergonomic design

High operating speed

With constant power drive

Technical specifications

Model: IKA RW 28 Basic overhead stirrer

Accessory: H270 cross socket

Type: Mechanical laboratory overhead stirrer

Power supply: 220–240 V, 50/60 Hz

Power consumption: 170 W

Motor output power: 90 W

Maximum stirring capacity (water): 80 L

Speed ​​range I: 40–350 rpm

Speed ​​range II: 200–1,400 rpm

Speed ​​control: Steplessly adjustable in two speed ranges

Torque (max.): 74 N·cm

Maximum viscosity: 100,000 mPa·s

Chuck clamping range: 1–10 mm

Rotator shaft diameter: Max. 10 mm

Permissible duty cycle: 100% (continuous operation)

Overload protection: Yes

Motor protection: Temperature limiter with overheat protection

Drive: Constant power drive

Design: Robust and ergonomic construction

Protection class: IP42

Dimensions (W × H × D): approx. 86 × 248 × 208 mm

Weight: approx. 7.5 kg
