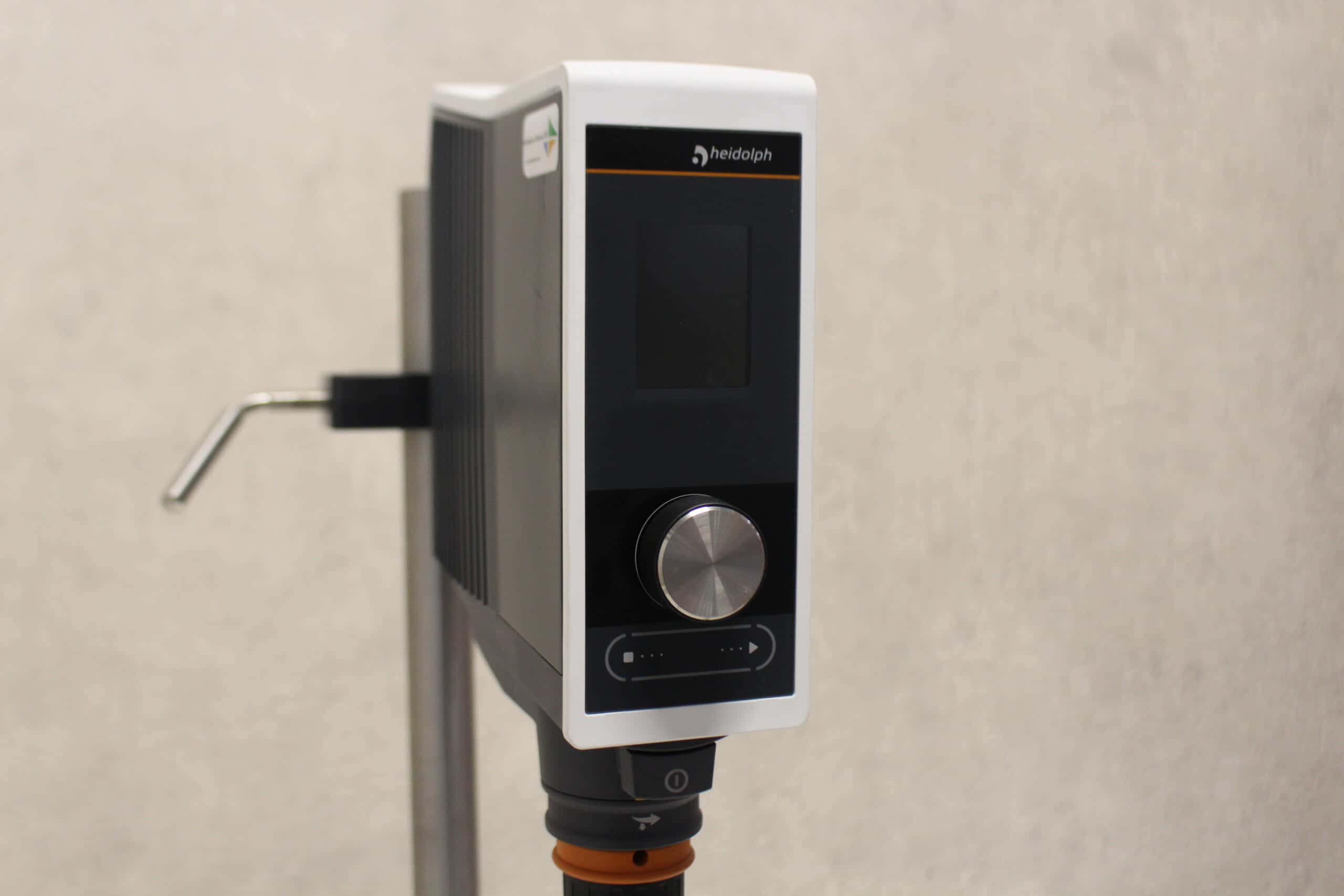

The Hei-TORQUE Expert 100 is a overhead stirrer with a wide speed range (10 – 2,000 rpm) and a maximum torque of 100 Ncm. With it you can optimally stir viscosities up to 60,000 mPas or volumes up to 50 liters (H2O).
The Hei-TORQUE Expert 100 performs every stirring task with minimal noise thanks to the latest engine technology. This overhead stirrer is also very user-friendly in terms of operation and safety. The 2.4 inch display makes it very easy to set the application parameters and control the process (e.g. using the torque trend display). The safety-related start/stop touch-function serves to minimize the risk of unintentional switching on.
Suitable for use in fume hoods or as a drive for reactor superstructures, the Hei-TORQUE Expert 100 has a quick-action chuck (quick chuck with safety ring) with a diameter of 10.5 mm, which can be combined with a large number of stirring tools.
Rotation speed range: 10 – 2000 rpm
Speed accuracy: ± 1%
Rotation speed indicator: digital
Maximum torque: 100 Ncm
Overheat protection: automatic cut-out
Maximum viscosity: 60000 mPa s
Stirring capacity (H2O): 50 l
Throught-shaft design: yes
Stirrer shaft: ∅ 2.5 – 10.5 mm
Dimensions (WxHxD): 86 x 350 x 247 mm
Weight: 4.4 kg

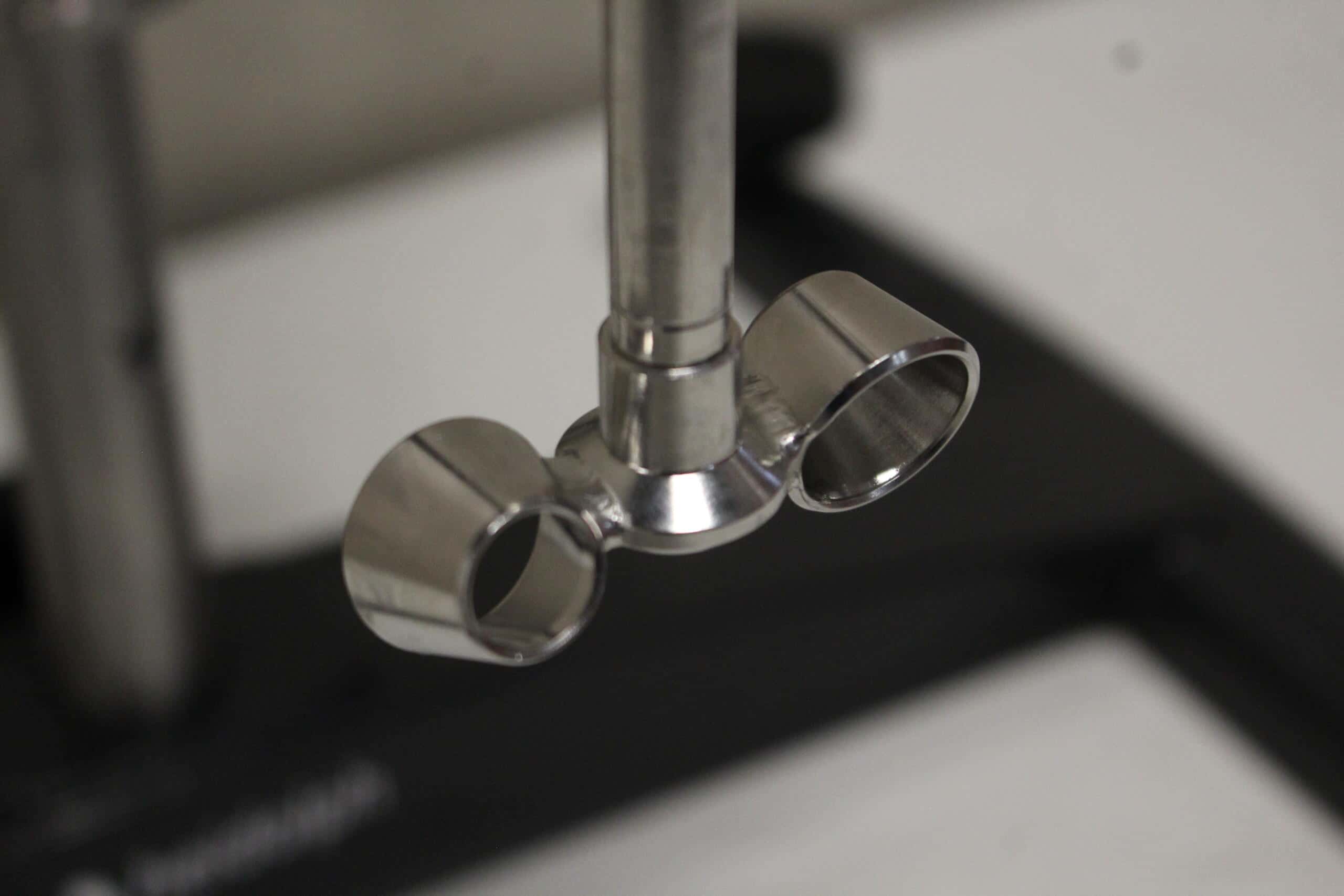

Including tripod and a VISCO JET – 60 mm
Particularly in the case of applications with very viscous media such as pastes and gels, a very reliable stirring process in the entire vessel without air entry is important.
The particular shape of the blades triggers an intrinsically dynamic flow, which shortens the process times with significantly better mixing results compared to conventional impellers. An all-rounder for aqueous and highly viscous substances.
Blade size: 60 mm
Length: 500 mm
Material: stainless steel V4A
Shaft diameter: 10 mm
Max. rotation speed: 800 rpm
For vessel diameter: 80 – 150 mm
Max. volume: 2700 mL
| Weight | 0,0 kg |
|---|---|
| Brand | Heidolph |
| Warranty | 6 months |
| Condition | Used, in good condition |
| Date of Manufacture | 2023 |
