Agilent G1956B LC/MSD SL Mass Selective Detector

The Agilent G1956B LC/MSD SL is a single quadrupole Mass Selective Detector (MSD) for liquid chromatography (LC/MS). The system is designed for qualitative and quantitative analyses in pharmaceutical, chemical, environmental, and academic laboratories. Thanks to its high sensitivity, reliable mass selection, and easy integration with the Agilent 1100 and 1200 Series HPLC systems, the G1956B is a widely used detector for routine LC/MS analyses.

The detector is equipped with a single quadrupole mass analyzer, an electrospray ionization source (ESI), and optionally an APCI ionization source. The built-in vacuum unit and automatic autotune ensure stable performance and reproducible results. The instrument supports both scan mode and Selected Ion Monitoring (SIM) for high sensitivity in targeted analyses. Technical specifications

Type Agilent G1956B LC/MSD SL

Mass analyzer Single Quadrupole

Ionization ESI standard, APCI optional

Mass range m/z 10–2,000

Resolution Unit resolution (≤ 0.7 Da FWHM)

Scan mode Full Scan and SIM

Maximum scan speed Up to 10,400 y-10,400 y-10 (Da/s)

Polarity Positive and negative, automatic switching

Polarity switching Approx. 300 ms

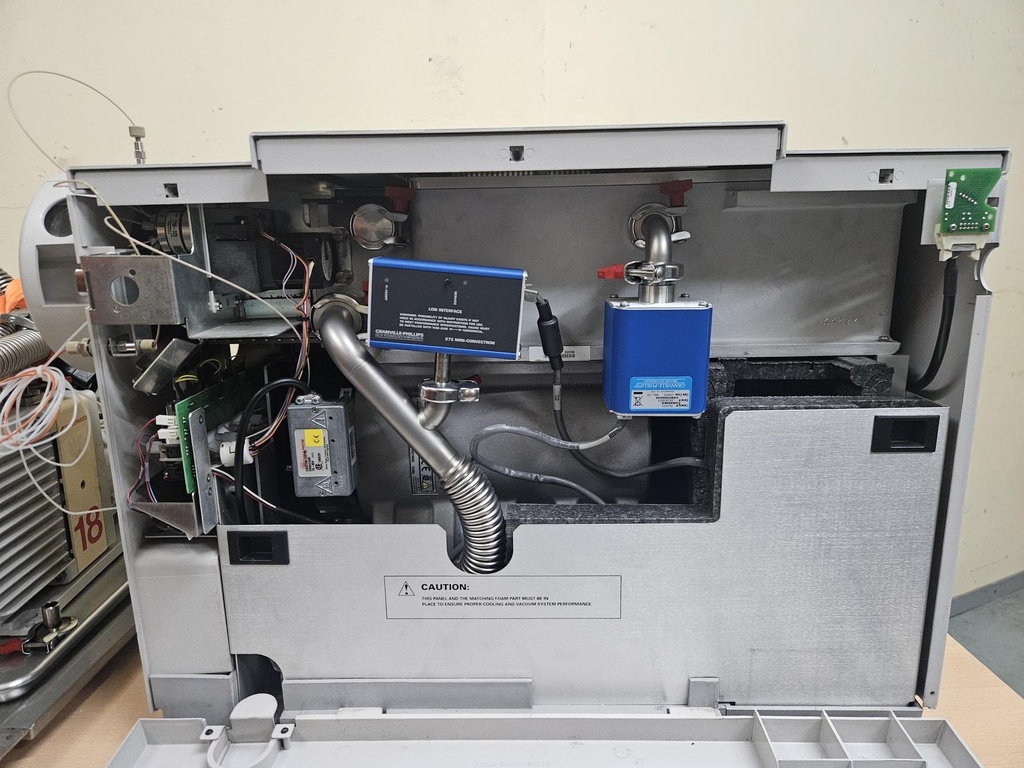

Vacuum system Turbomolecular pump with pre-vacuum pump

Detector Electron Multiplier

Control software Agilent ChemStation / OpenLAB CDS

Power supply 230 V / 50 Hz

Dimensions

Width 425 mm

Depth 620 mm

Height 690 mm

Weight approx. 65 kg

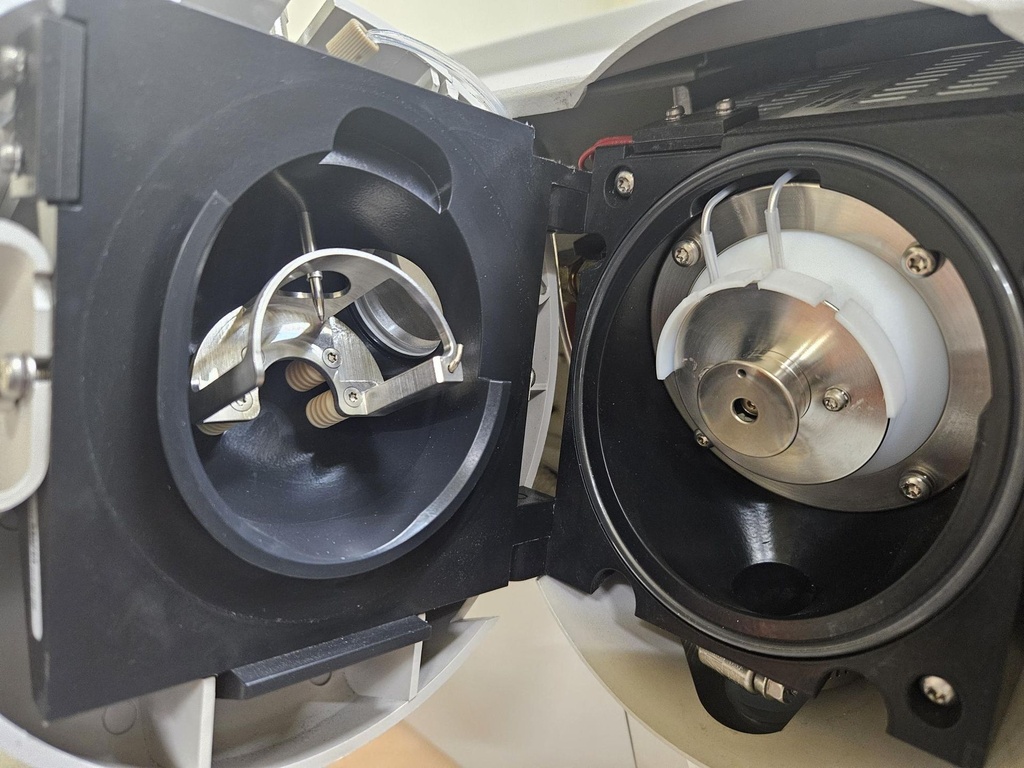

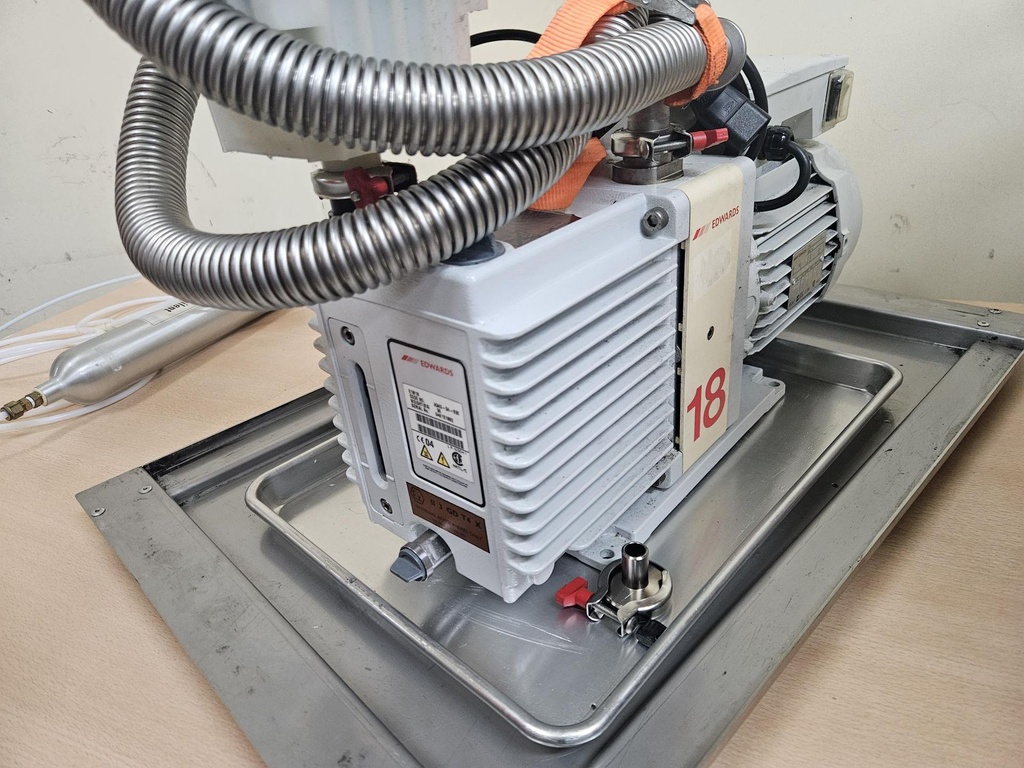

Includes the Agilent G1948A Electrospray Ionization (ESI) source, equipped with orthogonal nebulization for optimal sensitivity. Vacuum system equipped with a powerful Edwards 18 pre-vacuum pump. Control: Fully integrable with the trusted ChemStation software, not included.
