Agilent 1260 Prep HPLC System

Agilent 1260 prep HPLC 2x g1361a g2258a g1364b g1364c g1315d column switch etc

Description..

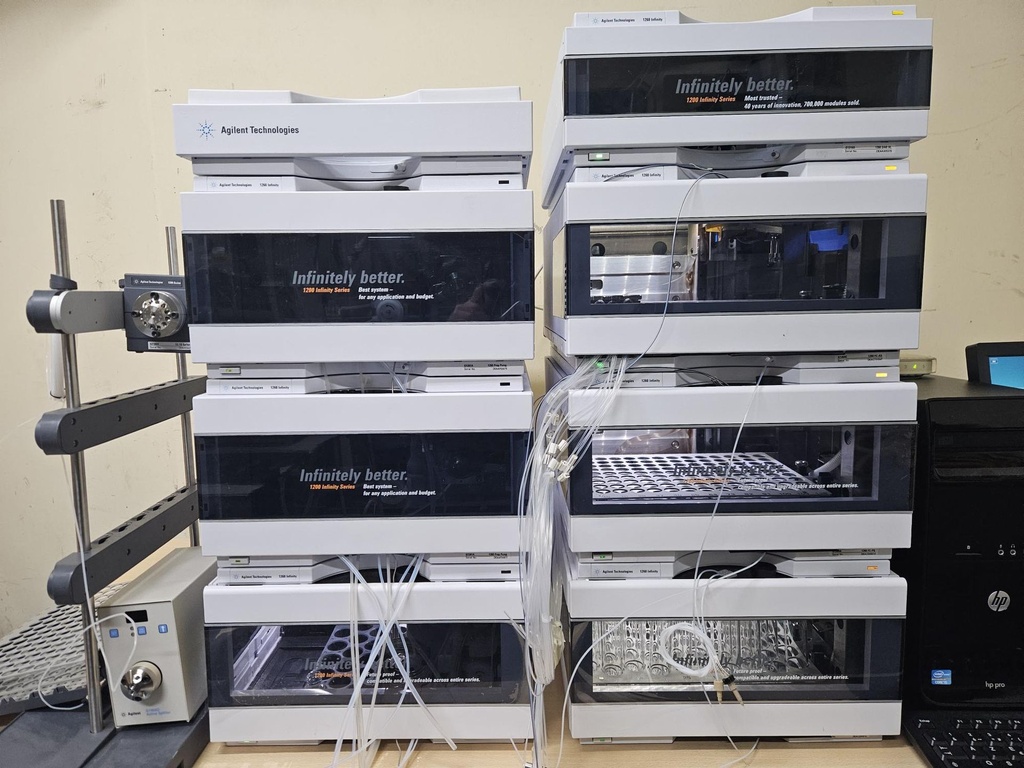

Preparative HPLCV system with solvent tray, 2 prop pumps, 1 sampler, 3 fraction collectors, Diode array detector etc

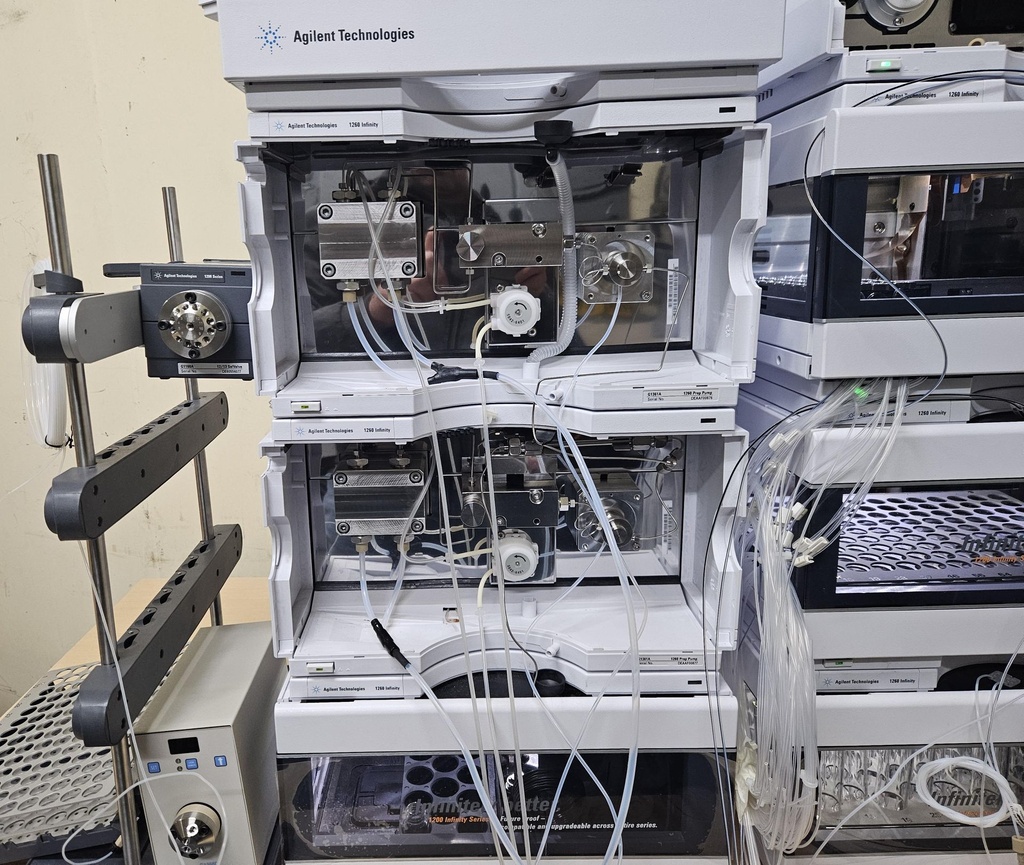

G1361A (Preparative Pump)

This pump is the “heart” of the system and is designed for high flow rates and stability.

Flow range: 0.001 – 100 ml/min.

Pressure range: Up to 400 bar (5880 psi).

Pump mechanism: Double parallel pistons with fixed stroke.

pH range: 1.0 – 12.5 (recommended).

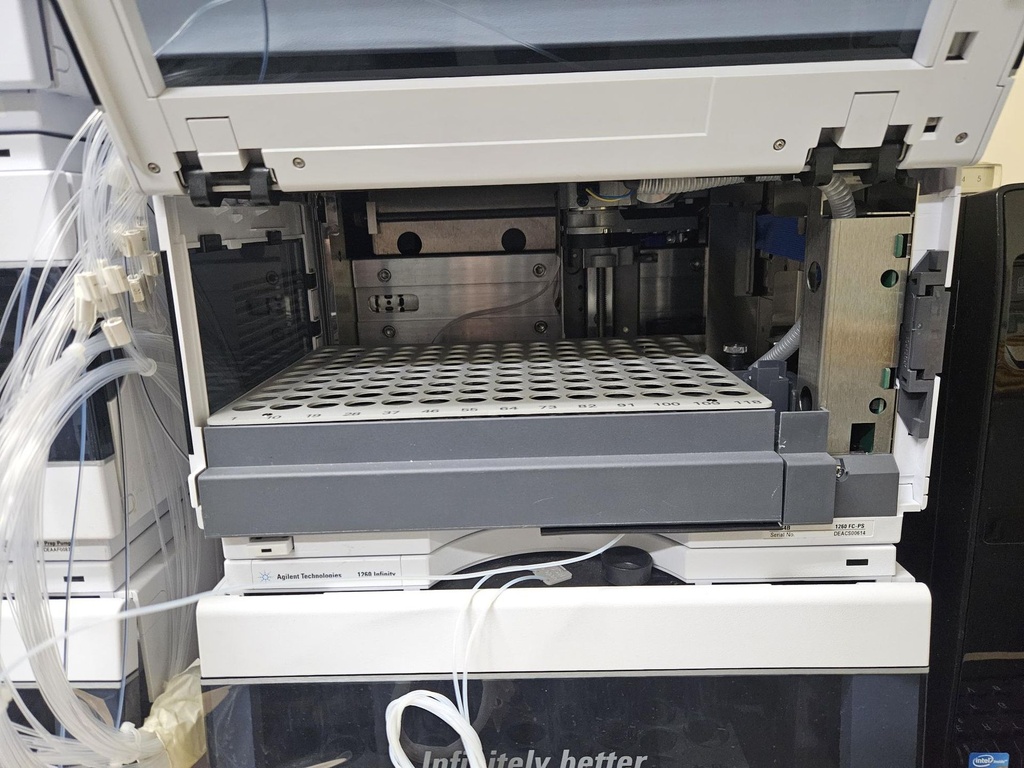

2. Autosampler: G2258A (Dual Loop Autosampler)

Especially for preparative injections of larger volumes.

Agilent Technologies

Agilent Technologies

Injection volume: 0.1 µl to 5000 µl (standard), adjustable up to 50,000 µl.

Capacity: 2 sample plates (e.g. 96-wells) plus 10 additional 2 ml vials.

Speed: Draw/eject speed up to 50 ml/min.

Precision: < 0.5% RSD (full loop).

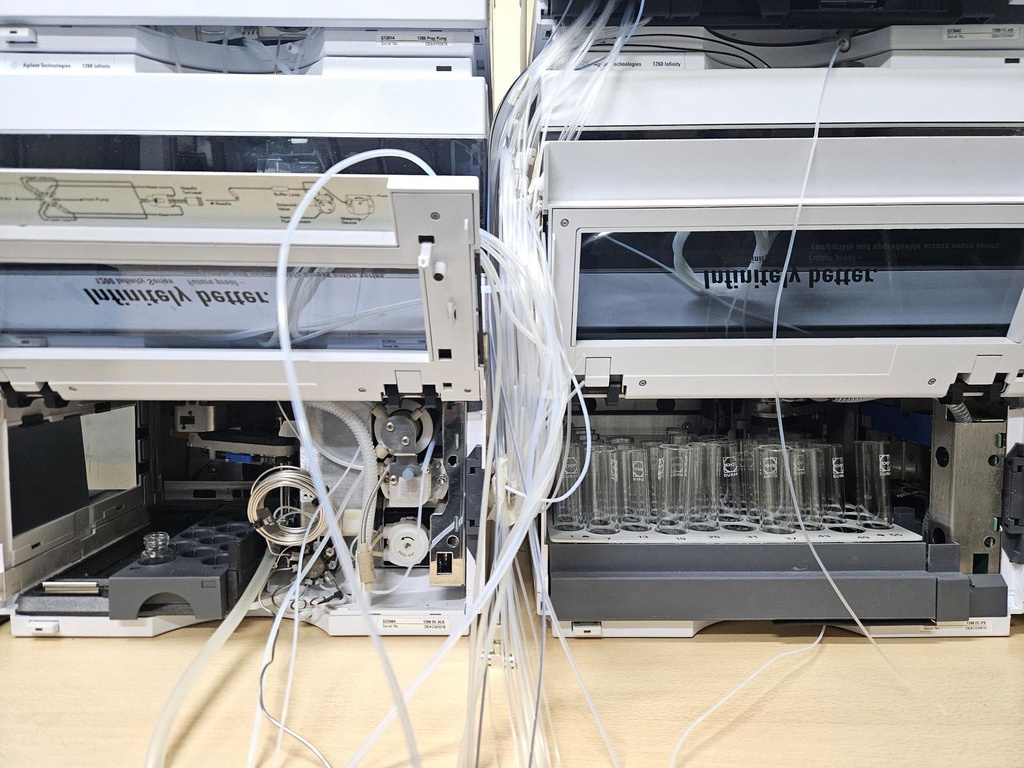

3. Fraction collectors: G1364B & G1364C

These modules collect your purified substances.

G1364B (Prep Scale): Suitable for high flow rates up to 100 ml/min.

G1364C (Analytical Scale): Optimized for lower flows up to 10 ml/min.

Triggering: Based on time, peak threshold (UV), or manual. Vessels: Supports various racks for test tubes (e.g. 12, 16, 25 or 30 mm diameter) and plates.

4. Detector: G1315D (Diode Array Detector VL)

For substance identification and control of the fraction collector.

Wavelength range: 190 – 950 nm (UV to visible light).

Light source: Deuterium lamp (UV) and Tungsten lamp (VIS).

Data rate: Up to 20 Hz (standard).

Slit width: Programmable from 1 to 16 nm for optimal sensitivity.

PC included, but unfortunately without login code.

Supplied as pictured
