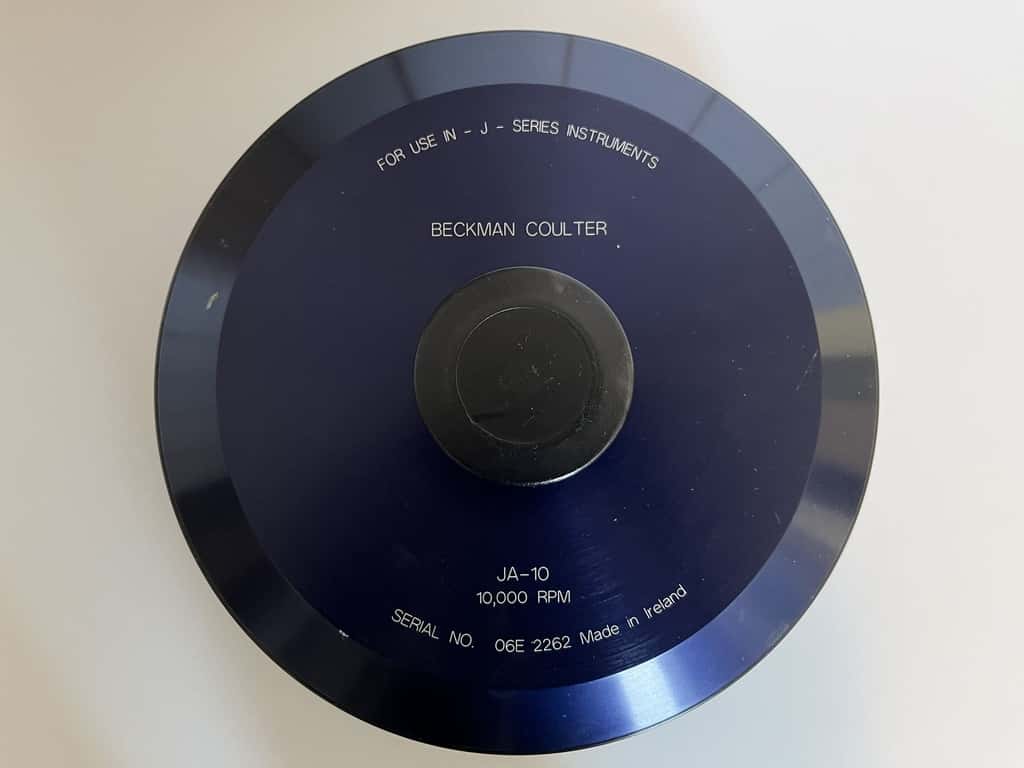

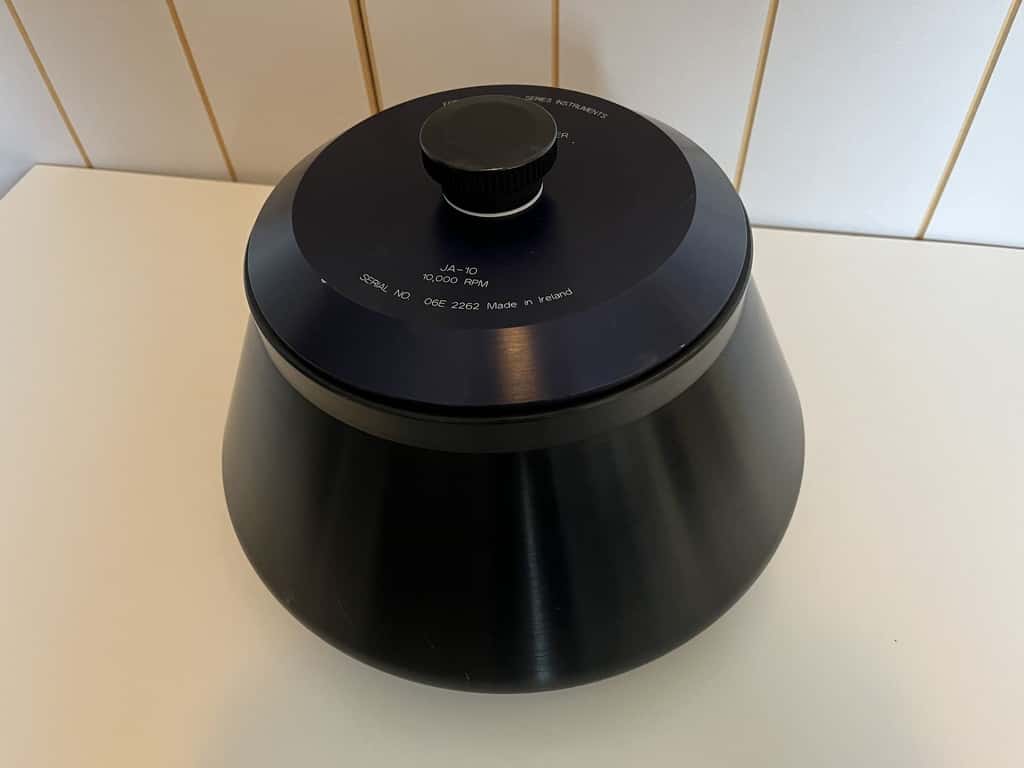

Beckman Coulter JA-10 Fixed-angle Centrifuge Rotor

The JA-10 from Beckman Coulter is a high-performance fixed-angle rotor designed for centrifuges in the J2, J6 and Avanti J series.
– Maximum speed: 10,000 rpm
– Capacity: it holds up to 6 x 500 mL bottles for a total volume of 3 litres per cycle. Ideal for separating large quantities of particles
– Material: the robust anodised aluminium rotor guarantees reliability, safety and compatibility with a wide range of tubes and vials. It is perfectly suited to cell biology, microbiology or biochemistry applications requiring powerful and homogeneous centrifugation.
– Weight loaded: 22 kg.

Technical details:
• Maximum speed: 10,000 rpm
• Critical speed range: 600 to 800 rpm
• Relative centrifugal force (RCF):
• At rmax (158 mm): 17,700 × g
• At rav (98 mm): 11,000 × g
• At rmin (38 mm): 4,260 × g
• K factor: 3610
• Number of cavities: 6
• Maximum capacity: 6 × 500 mL (3 L)
• Maximum bottle dimensions: 69 × 160 mm
• Acceleration time (full load): ≈ 4.5 minutes
• Deceleration time (max. braking): ≈ 5 minutes
• Rotor material: Anodised aluminium
• Weight of loaded rotor: 22 kg
• Maximum solution density: 1.2 g/mL
• Rotor code (Avanti J-E and J2/J6 with microprocessor): 10
