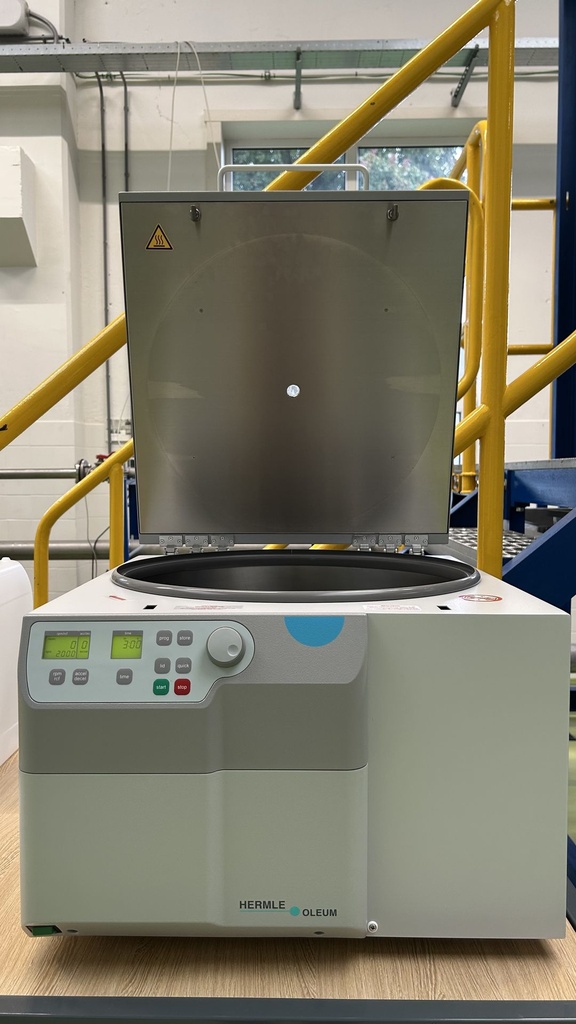

Hermle Oleum oil test centrifuge – without cooling

Hermle Oleum oil test centrifuge – without cooling

The Hermle Oleum is a specially developed laboratory centrifuge for oil testing, including according to ASTM methods. The centrifuge is equipped with a rotary rotor for four oil test tubes and is suitable for precise separation and analysis processes.

This model features standard air cooling and has no heating or cooling system. The speed is adjustable from 200 to 3,000 rpm, and the centrifuge can process up to four samples of up to 100 ml simultaneously.

The device is manufactured in accordance with international safety standards, including IEC 61010.

Technical specifications

Specification Data

Brand Hermle

Type Oleum

Version Oil test centrifuge, without cooling

Max. speed 3,000 rpm

Speed ​​range 200 – 3,000 rpm

Max. RCF 2,213 × g

Max. capacity 4 × 100 ml

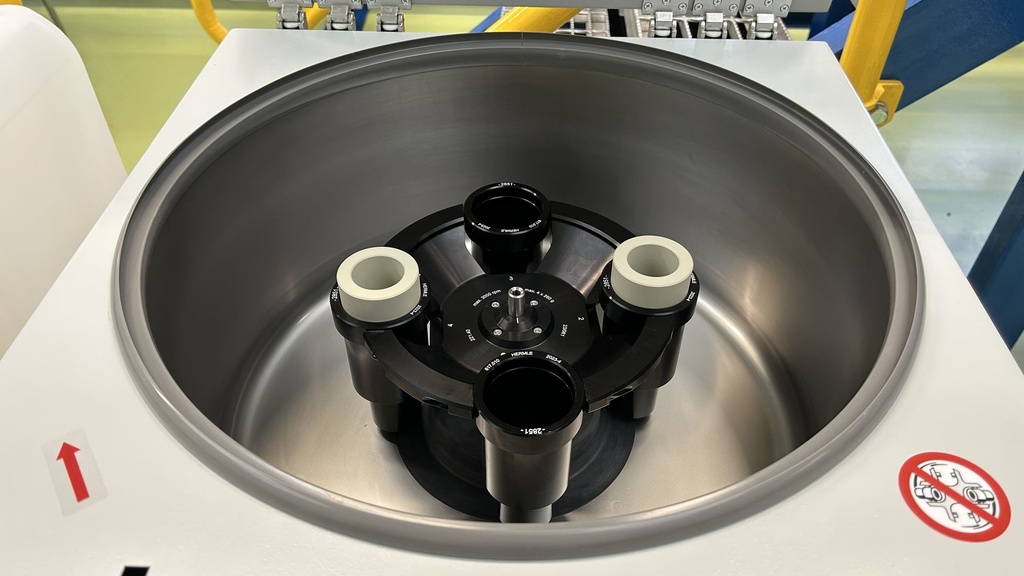

Rotor Swing-out rotor, 4 positions

Timer 1 min – 99 hours 59 min

Timer setting In increments of 1 min / 10 sec

Cooling Normal air cooling

Heating None

Cooling system None

Noise level <55 dBA at maximum speed

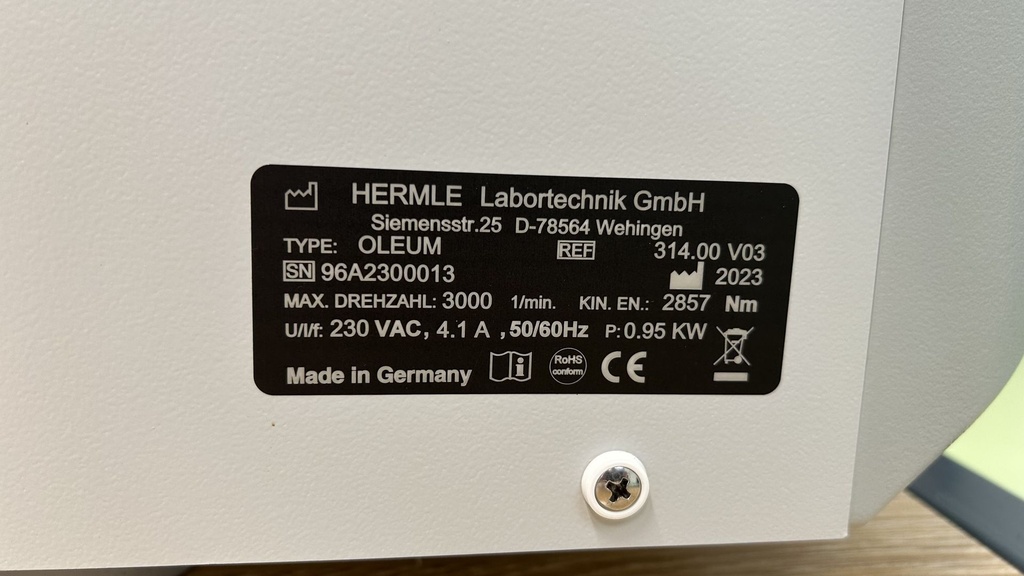

Power supply 230 V / 50–60 Hz

Power 950 W

Safety standard IEC 61010

Dimensions (W × H × D) 56 × 41 × 64 cm

Weight 72 kg

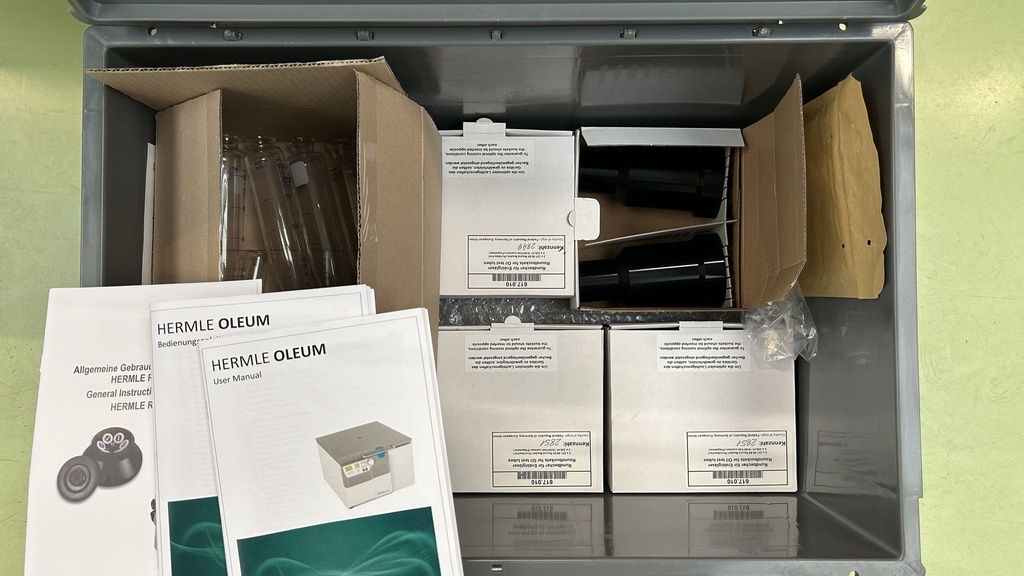

Scope of delivery

Hermle Oleum oil test centrifuge

Swing-out rotor, 4 positions for oil test tubes according to ASTM

8 × conical oil test tube, glass

4 × round rotor cups, including 2 spare cups

2 × adapter for conical oil test tubes

Manuals

EC Declaration of Conformity

Application: laboratory testing and oil testing using ASTM-compliant oil test tubes.
