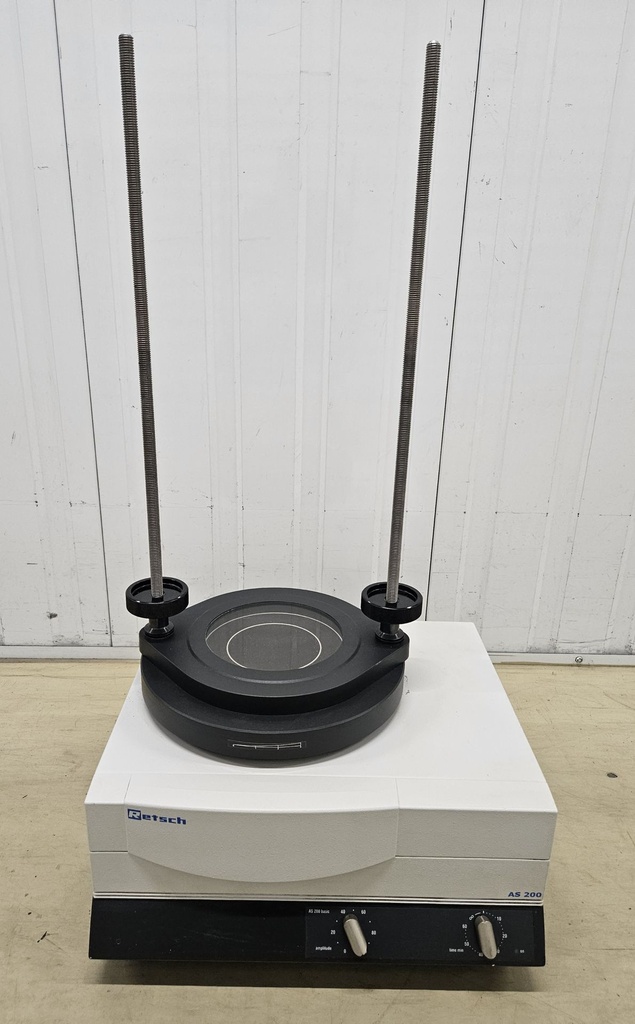

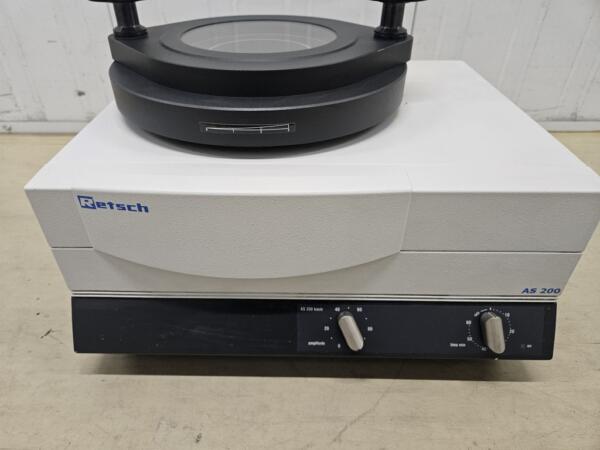

Retsch AS200 Basic Sieve Machine

The AS 200 series is used in research and development, quality control of raw materials, intermediate products and finished products, as well as for production monitoring. The controllable electromagnetic drive offers optimal adjustment for every product. Sharp fractions are obtained even after very short sieving times.

The AS 200 basic is the low-cost alternative in the model series, offering the usual RETSCH quality and reliability. With analogue adjustment of the vibration amplitude and sieving time.

Advantages:

-Suitable for dry and wet sieving

-Excellent separation efficiency even with short sieving times

-Efficient electromagnetic drive

-3D throwing motion ensures optimal use of the free sieve surface and allows the sample to move evenly across the entire sieve surface

-Simple operation, ergonomic design

-Maintenance-free

Applications: separation, fractionation, particle size measurement

-Feed material: powders, bulk materials, suspensions

Specifications:

-Measuring range: 20 µm – 25 mm

-Movement of product to be sieved: throwing motion with rotational impulse

-Batch size/Feed quantity: 3 kg

-Max. number of fractions: 9 / 17

-Max. weight of sieve tower: 4 kg

-Amplitude: analogue, 0 – 3 mm

-Time display: analogue, 1 – 60 min

-Suitable for sieving dry products: yes

-Suitable for sieving wet products: yes

-Usable sieve diameters: 100 mm / 150 mm / 200 mm / 203 mm (8″)

-Max. height of sieve tower: 450 mm

-Sieve clamping systems: ‘standard’, ‘comfort’, each for dry and wet sieving

-Dimensions (W x H x D): 400 x 230 x 350 mm

-Net weight: approx. 30 kg

Supplied without sieves!
