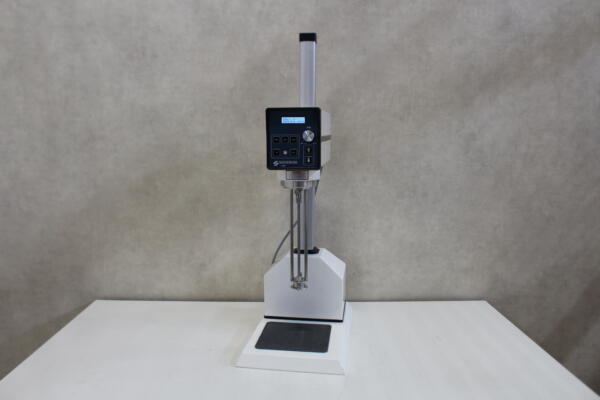

Silverson L5M High Shear Laboratory Mixer

The L5M Laboratory Mixer is suitable for the widest range of applications – mixing, emulsifying, homogenizing, disintegrating and dissolving – with an efficiency and flexibility unmatched by other machines. With a capacity from 1ml up to 12 liters and the ability to mix in-line with flow rates up to 20 liters/minute, they offer excellent reproducibility when scaling up to full-scale production and provide an accurate and easy means of forecasting the performance of larger Silverson machines under full-scale working conditions.

Maximum speed: 8000 rpm (6000 rpm under full load)

Working height above platform: 30 – 330 mm

Dimensions (HxWxD): 940 x 300 x 500 mm

Weight: 22 kg

Equipped with:

Mixing unit: Standard drive shaft and rotor – Capacity, depending on viscosity, up to 12 L

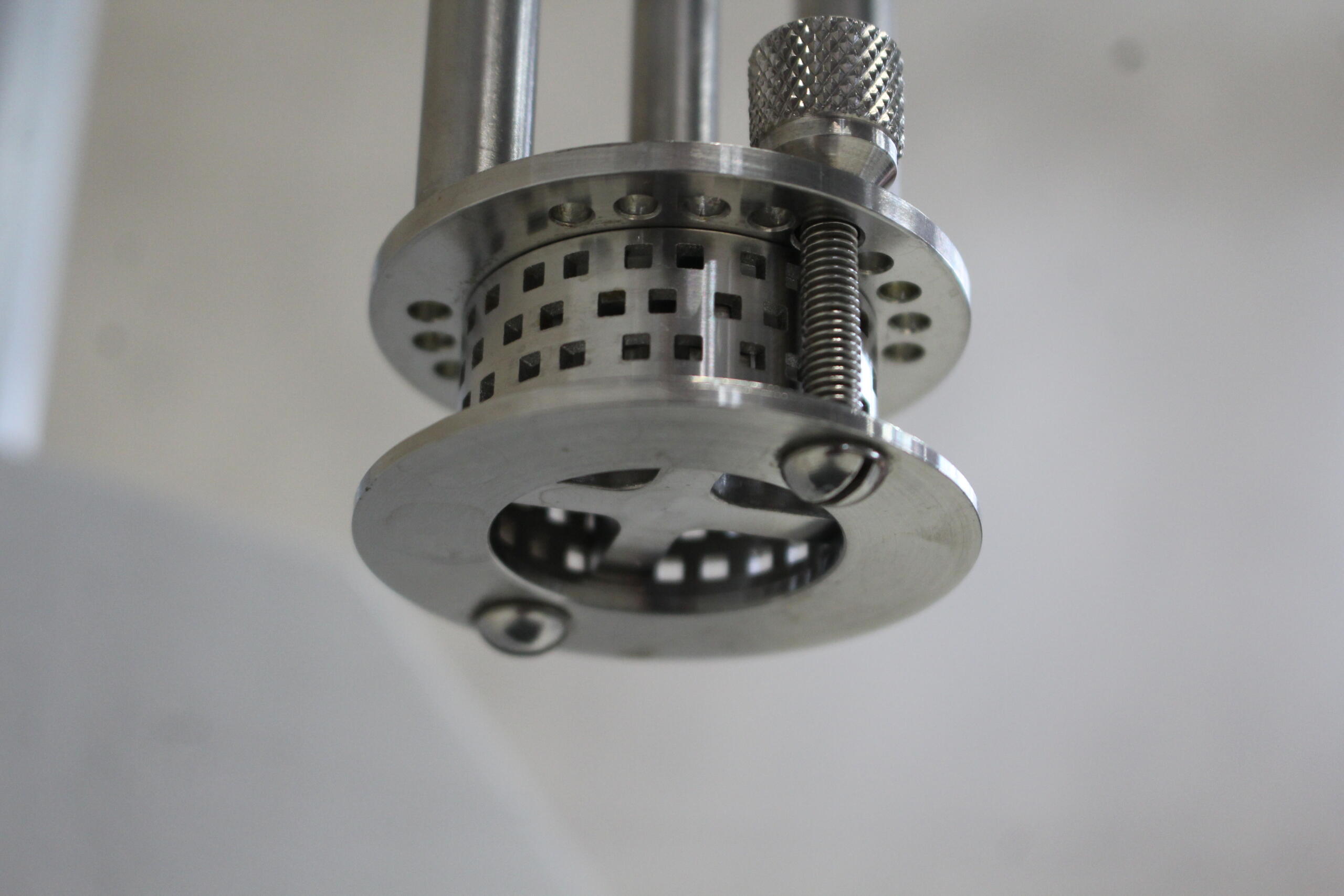

Workhead: Square Hole High Shear Screen – The configuration and fine internal tolerances of this stator provide exceptionally high shear rates, ideal for the rapid size reduction of soluble and insoluble granular solids. It is also suitable for the preparation of emulsions and fine colloidal suspensions.
