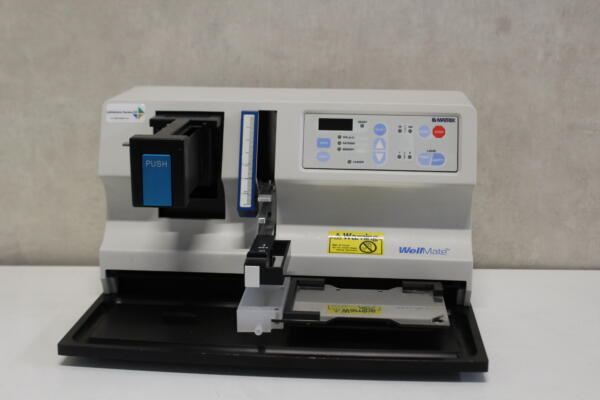

Matrix WellMate Microplate Dispenser

Microplate Filling Speeds:

5 µl: 96-Well Plate – 3.2 seconds, 384-Well Plate – 9 seconds

10 µl: 96-Well Plate – 4.5 seconds, 384-Well Plate – 11 seconds

50 µl: 96-Well Plate – 8.7 seconds, 384-Well Plate – 26.5 seconds

100 µl: 96-Well Plate – 13.2 seconds, 384-Well Plate – 45.5 seconds

500 µl: 96-Well Plate – 52.2 seconds, 384-Well Plate – N/A

1500 µl: 96-Well Plate – 148 seconds, 384-Well Plate – N/A

Tubing Cartridge Guide (none included):

8-Channel, Standard-Bore, Plastic-molded Nozzles (ID: 201-30001)

Orifice Size: 0.58 mm

Compatibility: 6 to 96-Well Microplates

Dispensing accuracy: ± 2.0% or 1.0 µl

8-Channel, Small-Bore, Plastic-molded Nozzles (ID: 201-30002)

Orifice Size: 0.38 mm

Compatibility: 6 to 384-Well Microplates

Dispensing accuracy: ± 2.0% or 0.25 µl

8-Channel, Stainless Steel, PTFE-coated Nozzles (ID: 201-30003)

Orifice Size: 0.28 mm

Compatibility: 6 to 384-Well Microplates

Dispensing accuracy: ± 2.0% or 0.25 µl

Dimensions (WxDxH): 368 x 305 x 216 mm

Weight: 11 kg
