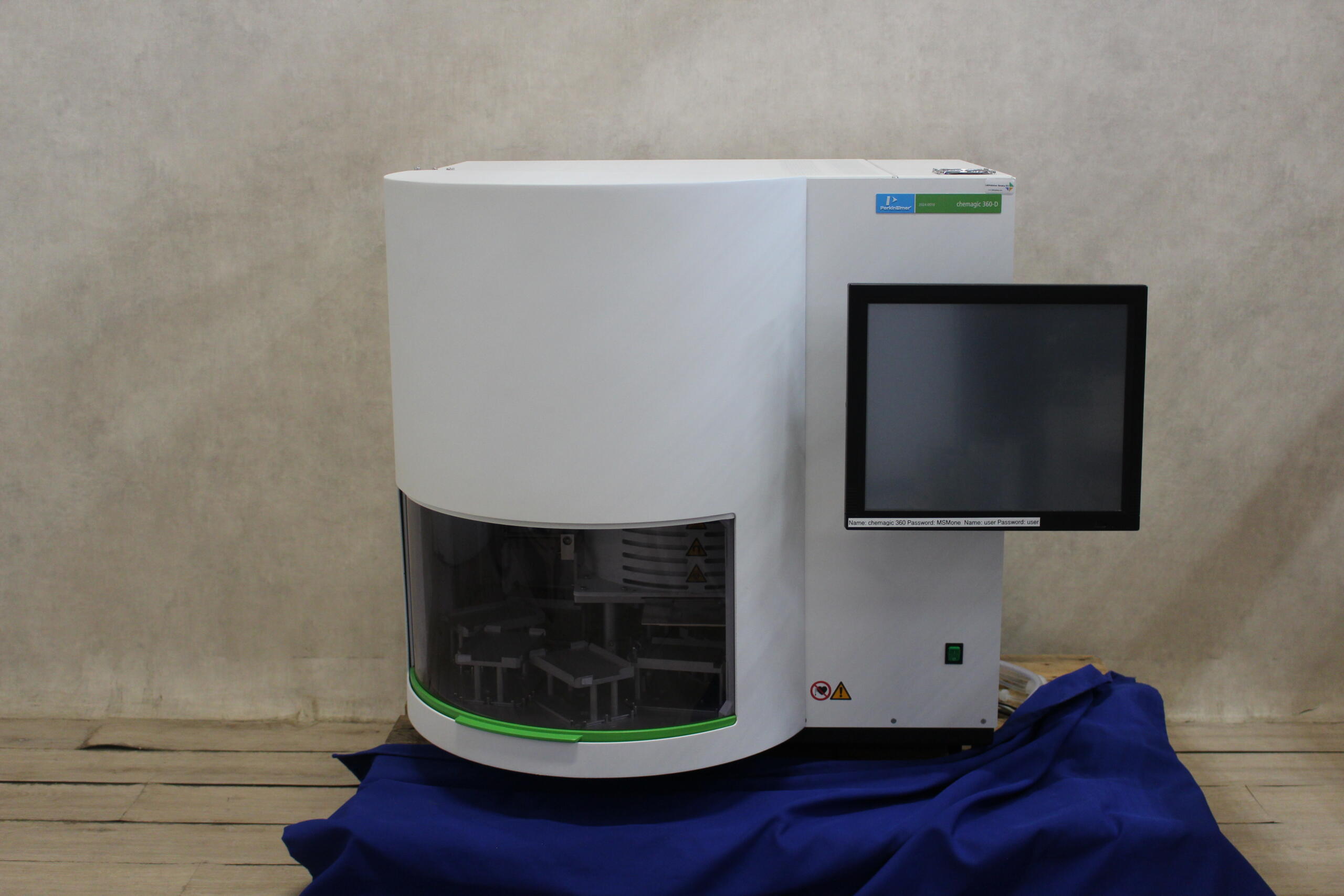

Perkin Elmer Chemagic 360-D Nucleic Acid Extractor Instrument

The Chemagic 360-D is an automated laboratory instrument used in preanalytical preparation of samples through magnetic particle seperation technology for use with clinical sample kits. The instument is intended for use by healthcare professionals such as laboratory personnel or physicians who are trained in molecular biology techniques.

Instrument features:

Sample volumes from 50 µl – 18 ml

High throughput: up to 96 samples per run

Fast runtime: isolation of DNA from blood in less than 45 minutes

Easy to integrate with liquid handling platforms

Intuitive software (installed on included Windows 10 PC)

Barcode reading for sample tracking

LIMS compatible log files

Quality nucleic acid isolation – proven success with challenging downstream applications (e.g. NGS, MLPA)

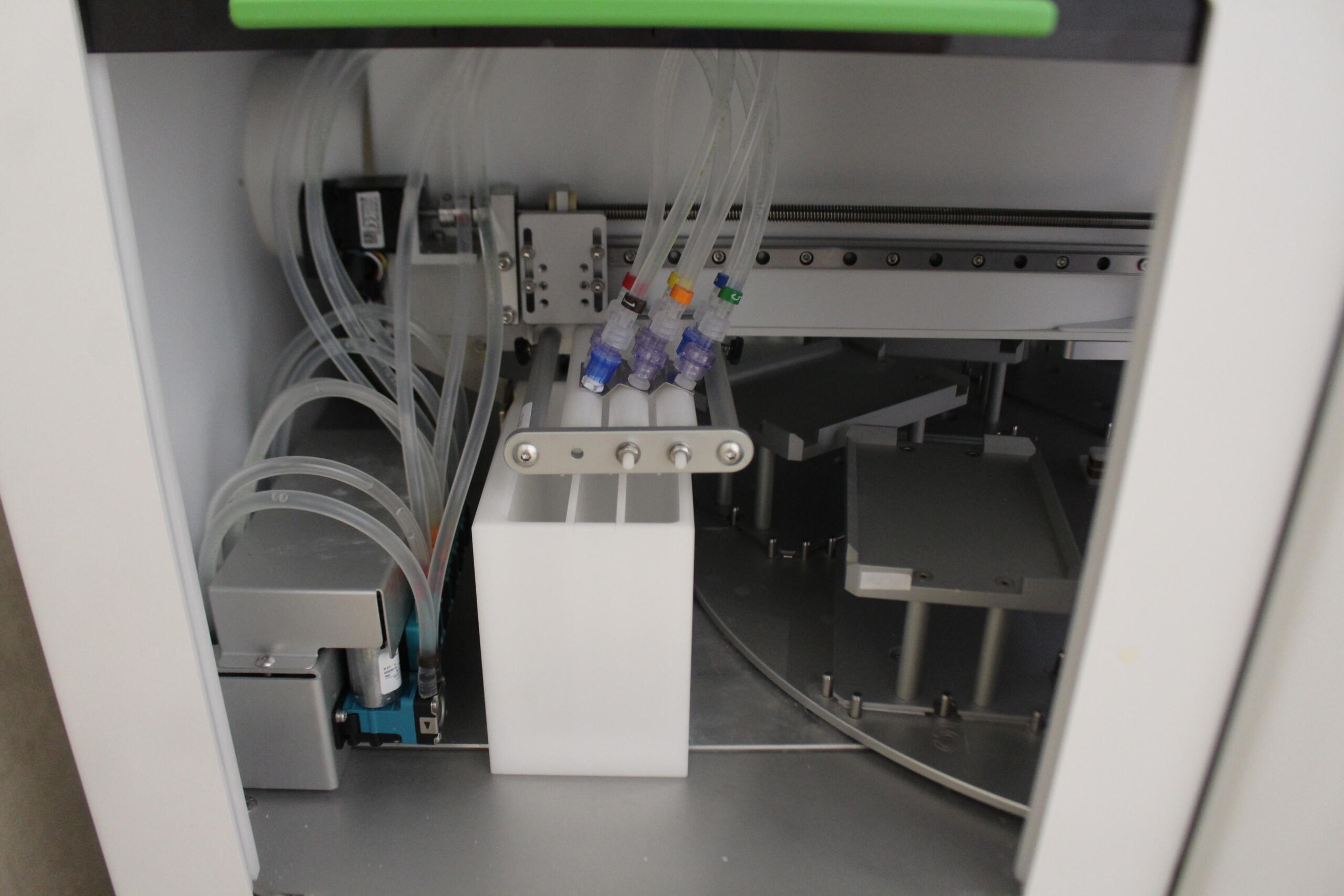

Buffer and Washer liquid dispenser:

Range 200 µl – 45 ml

Accuracy: < +/- 12%

Dimensions (WxDxH): 900 x 820 x 900 mm

Weight: 140 kg
