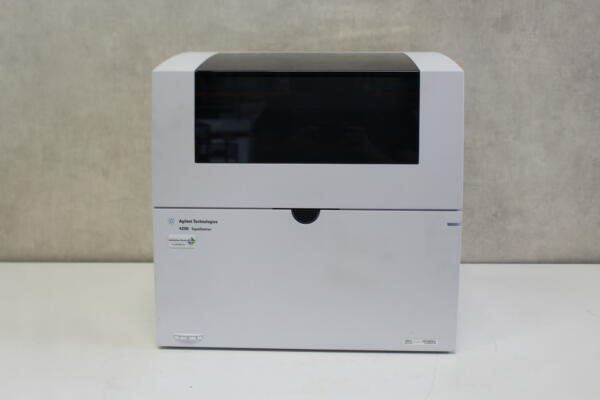

Agilent 4200 TapeStation System

The 4200 TapeStation system is an established, high-throughput automated electrophoresis platform for nucleic acid sample quality control. Building on the success of the proven ScreenTape technology, it allows fully automated, easy, and reliable analysis of DNA and RNA samples for up to 96 samples per run. The 4200 TapeStation system provides a complete solution for true end-to-end sample quality control in next-generation sequencing (NGS), biobank, or vaccine development workflows.

Simplified workflow and minimal hands-on time with fully automated sample processing and the proven, ready-to-use ScreenTape technology

Nucleic acid analysis with minimal manual intervention and excellent reproducibility for size, concentration, and integrity

Full compatibility with all available RNA and DNA ScreenTape assays, including assays for genomic and cell-free DNA

Easy switching between DNA and RNA ScreenTape assays for excellent application flexibility

Full sample scalability from 1 to 96 samples with constant cost-per-sample

Minimized time to results with as little as 1 to 2 minutes per sample or less than 90 minutes for 96 samples

Reduced sample consumption with as little as 1 to 2 µL of DNA and RNA samples, even for high-sensitivity assays

No risk of cross contamination with individual ScreenTape lanes

Reliable integrity standards for RNA (RNA integrity number equivalent, RINe), genomic DNA (DNA integrity number, DIN), and cell-free DNA (%cfDNA)

Number of Samples per Run: Any number between 1 – 96

Dimensions (WxDxH): 435 mm x 510 mm x 445 mm

Weight: 25.5 kg

Including PC
