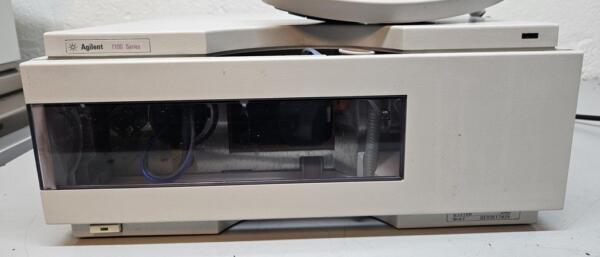

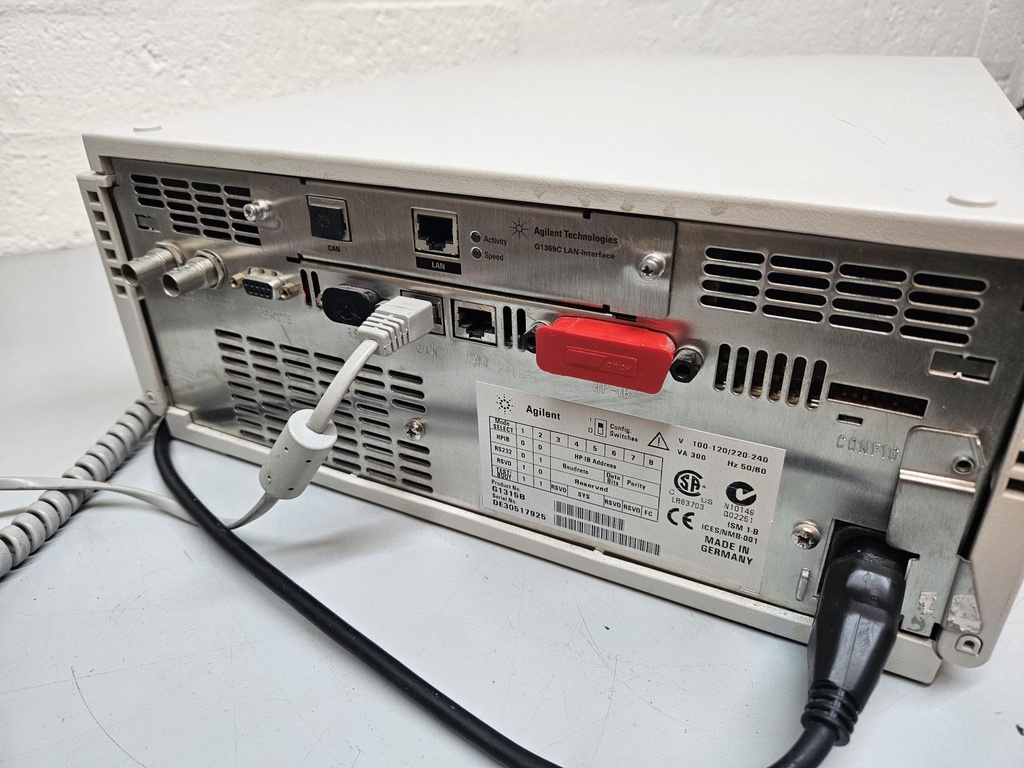

Agilent 1100 DAD G1315B with LAN Interface

Agilent 1100 dad G1315B met LAN interface

The Agilent 1100 Series G1315 Diode Array Detector is designed for the maximum optical performance. Flexible slit setting from fine bands to highest sensitivity, with settings of 1 nm the fine structure of benzene can be revealed – even at 0.7mAUFS. A broad slit of 8 or 16nm can be chosen to minimize baseline noise thus enhancing sensitivity. System specifications include:

Specifications:

Wavelength range: 190-950 nm
Light source: Deuterium and tungsten lamps
Detection type: 1024 – element photodiode array
Short term noise (ASTM) single & mult-wavelength: ± 1° x 10-5 AU at 254 and 750 nm
Drift: 2° x 10-3 AU / hr at 254 nm
Linear absorbance range: > 2 AU (upper limit)
Wavelength accuracy: ± 1 nm
Wavelength bunching: 1 – 400 nm
