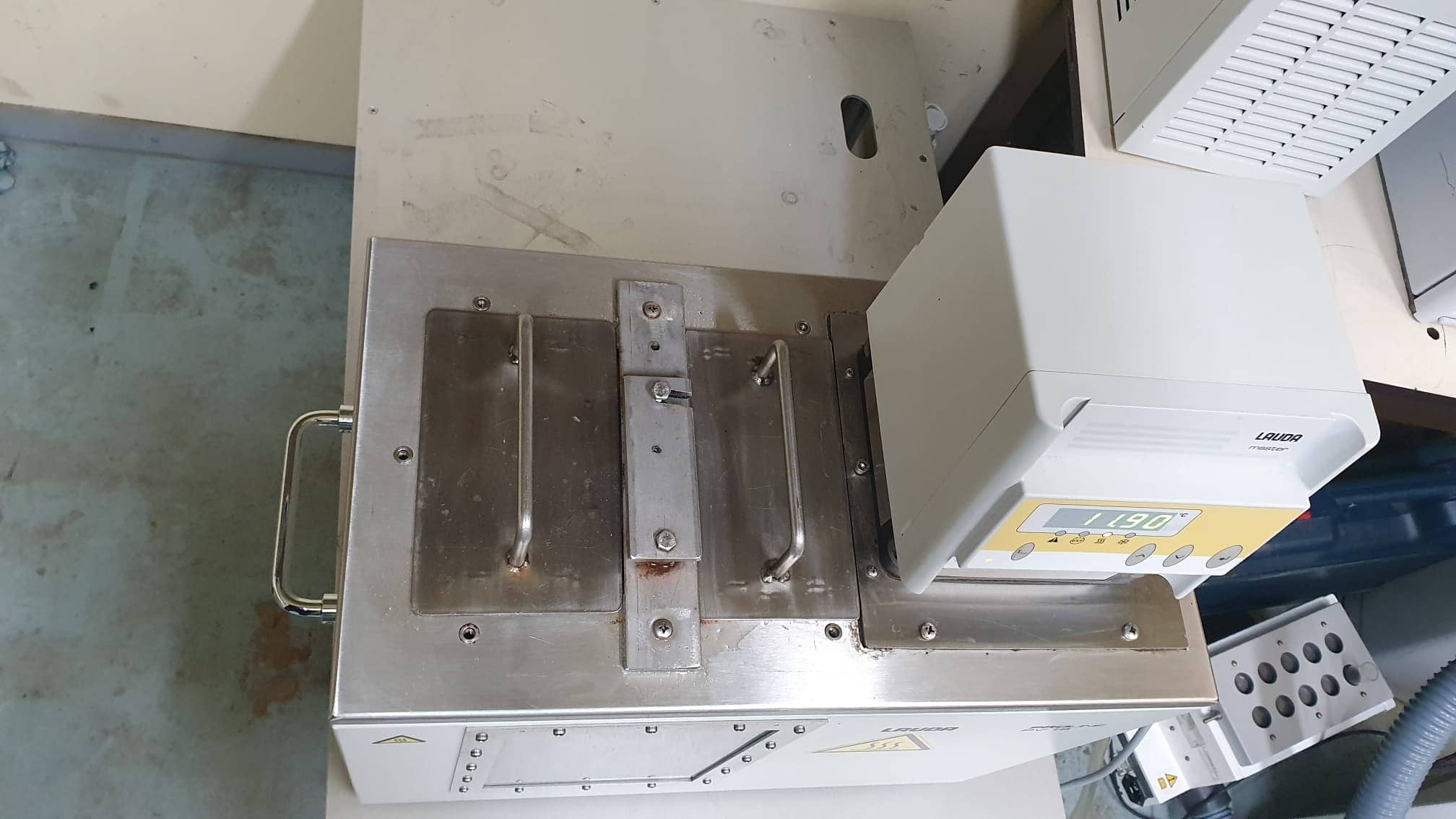

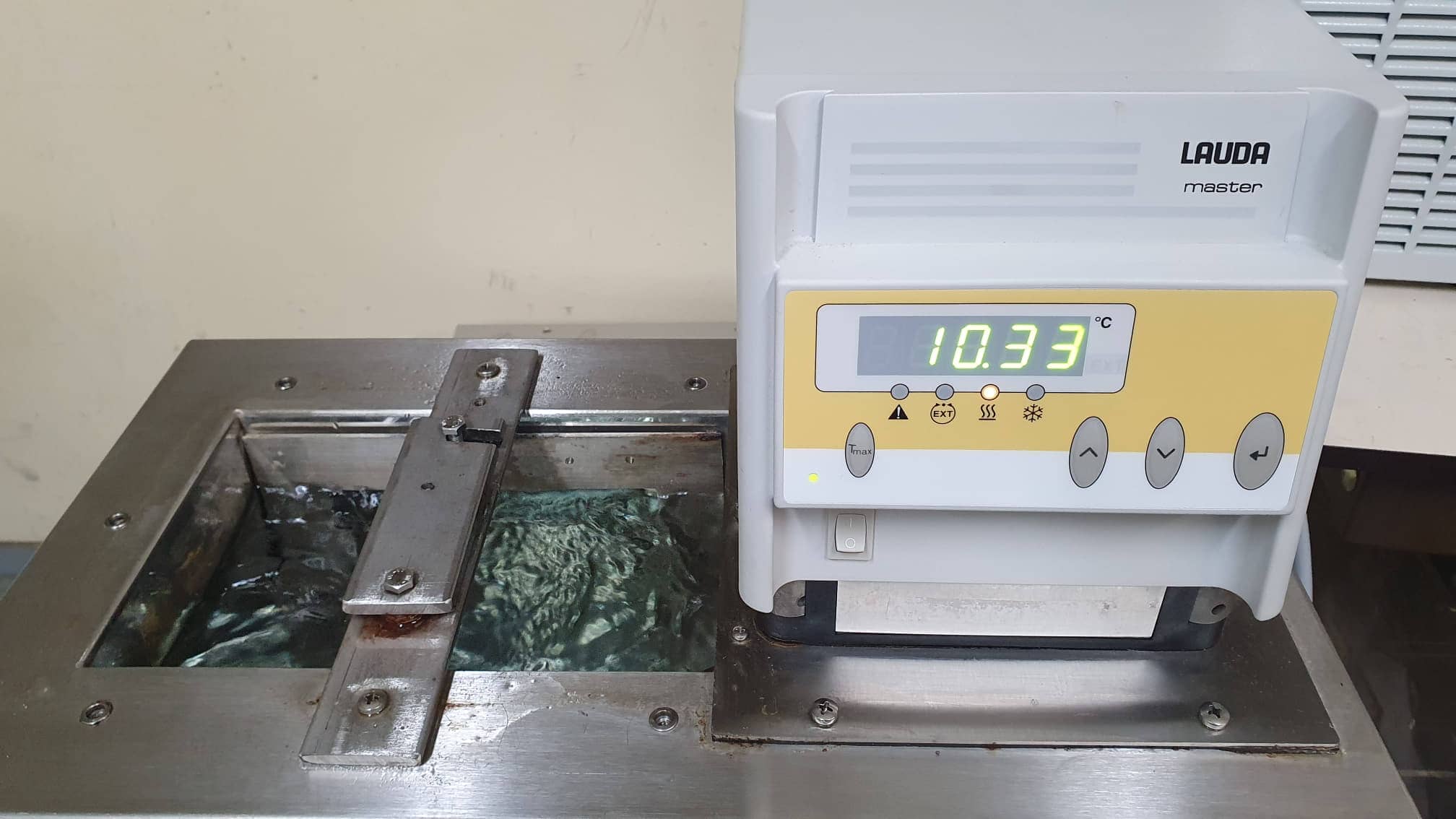

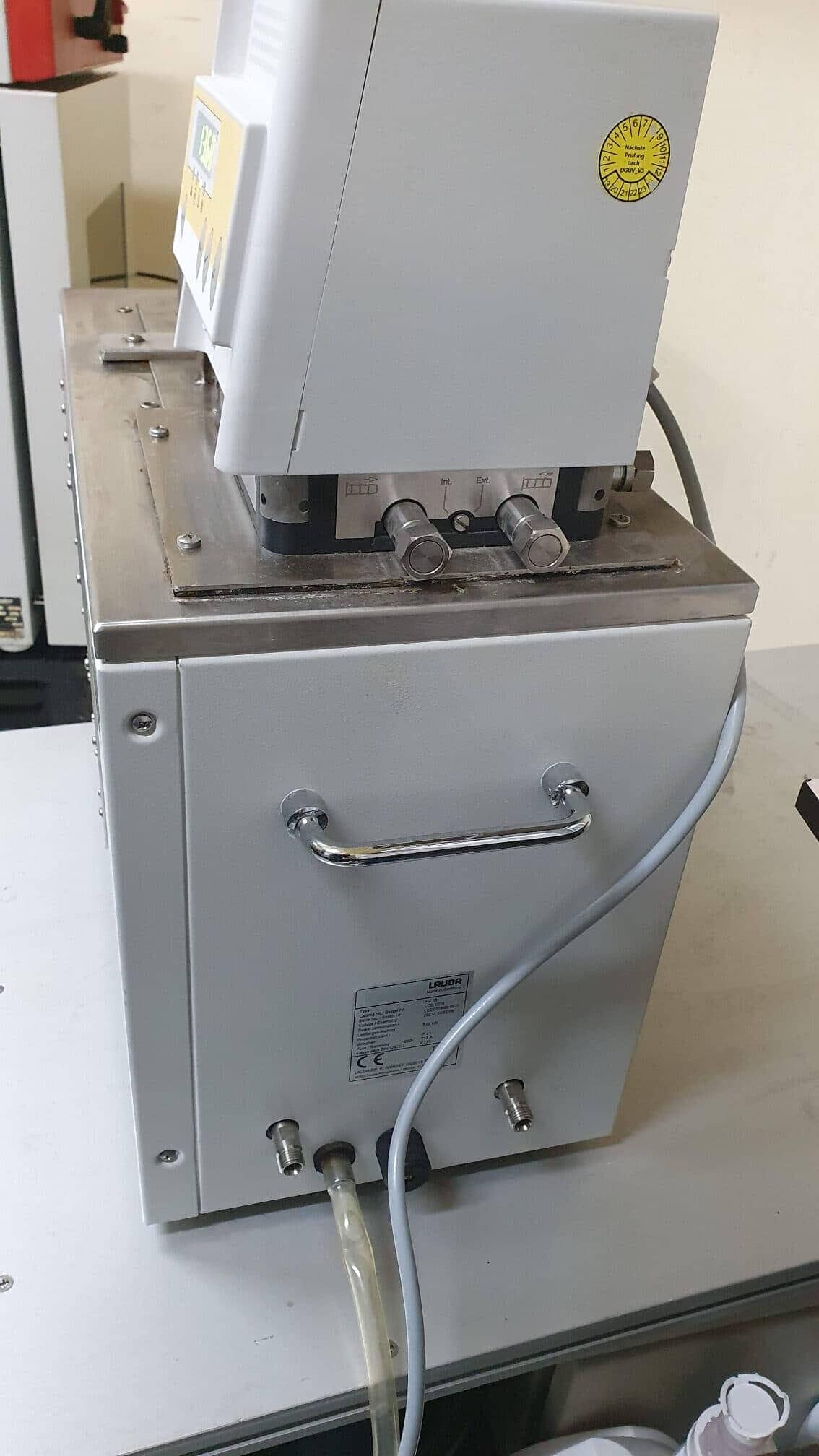

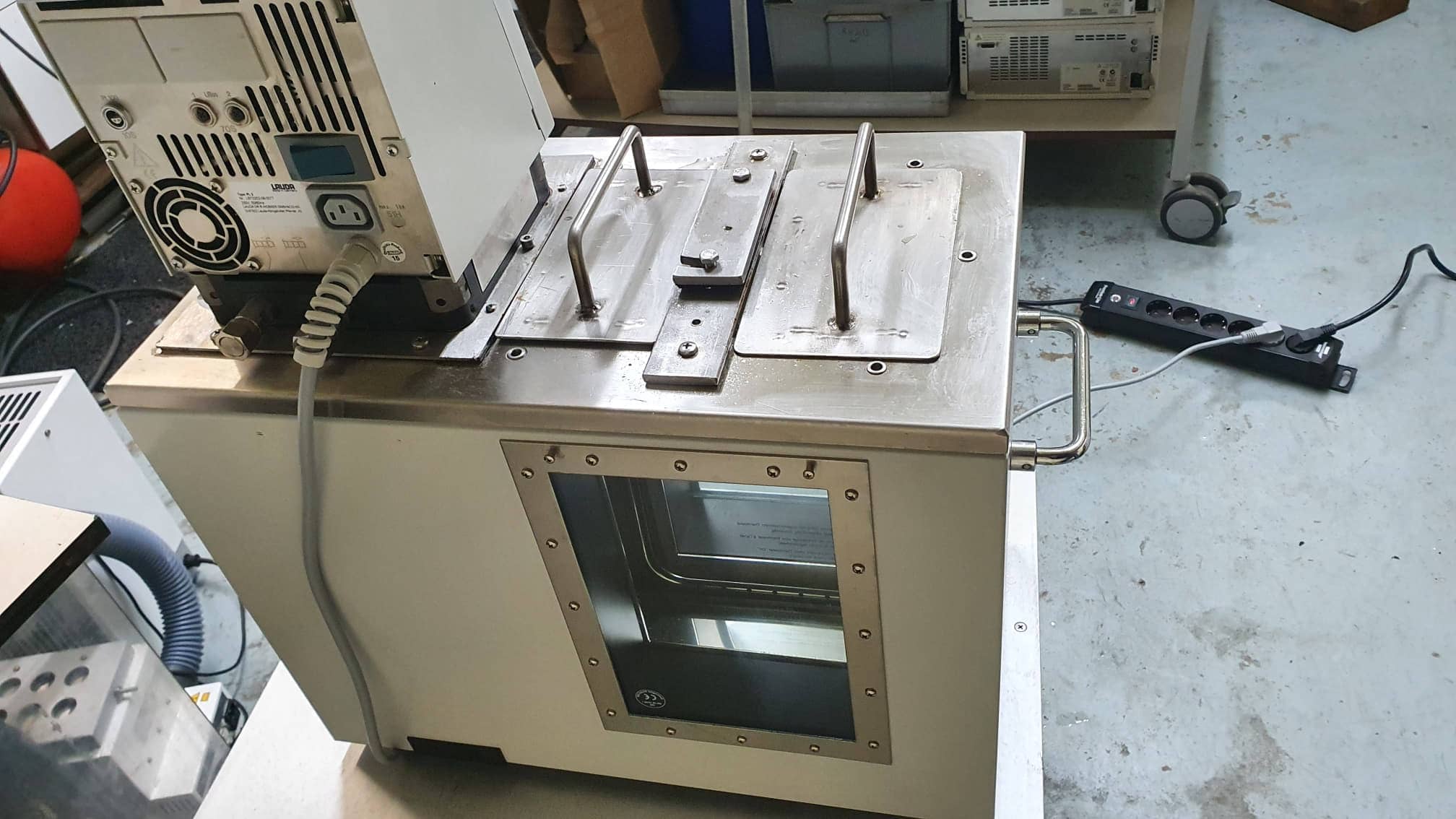

LAUDA Proline PV 15 Water / oil bath

LAUDA Proline PV 15 Water / oil bath.

Immersion bath with double circulation option.

Connection to external cooling possible.

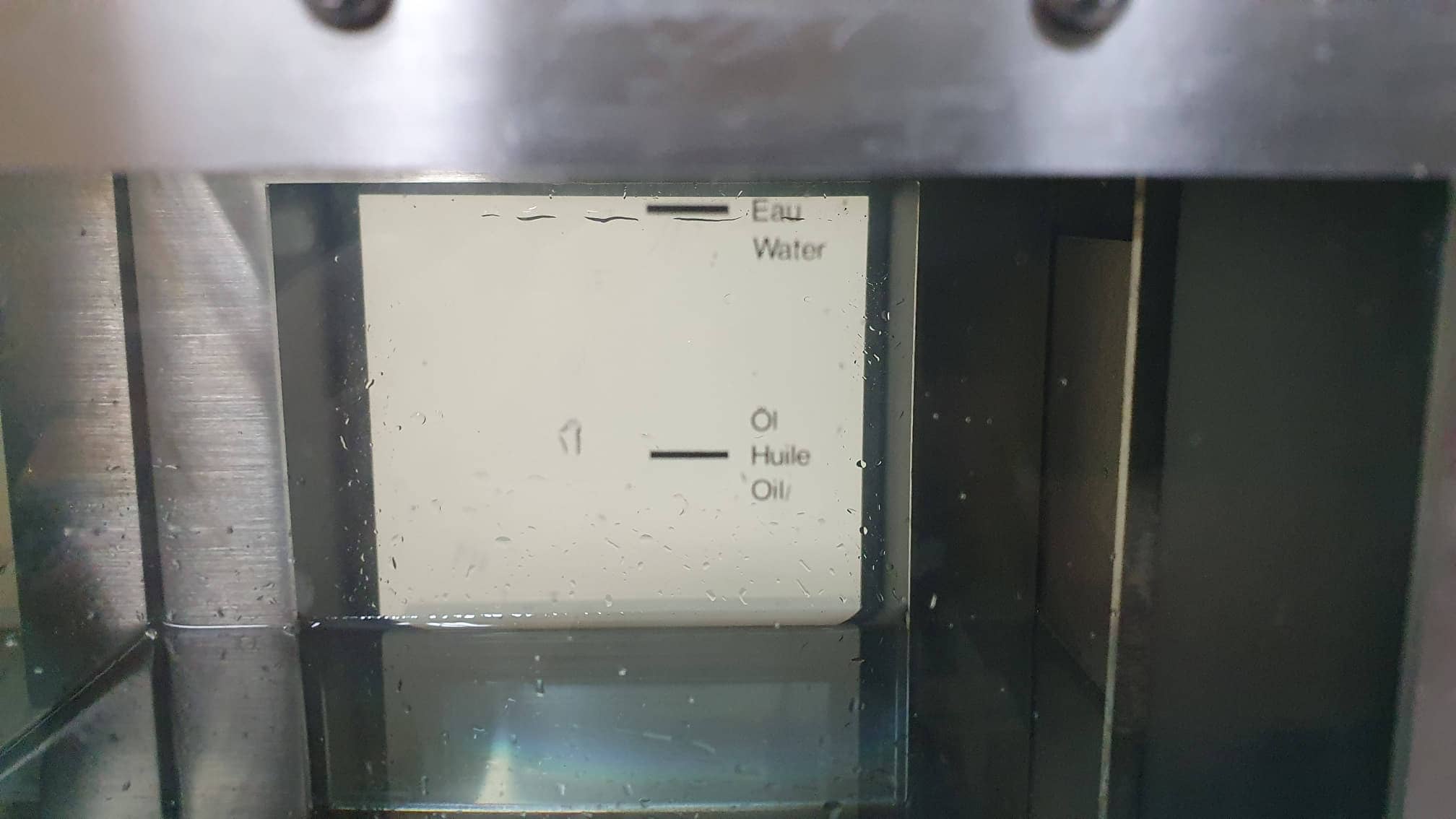

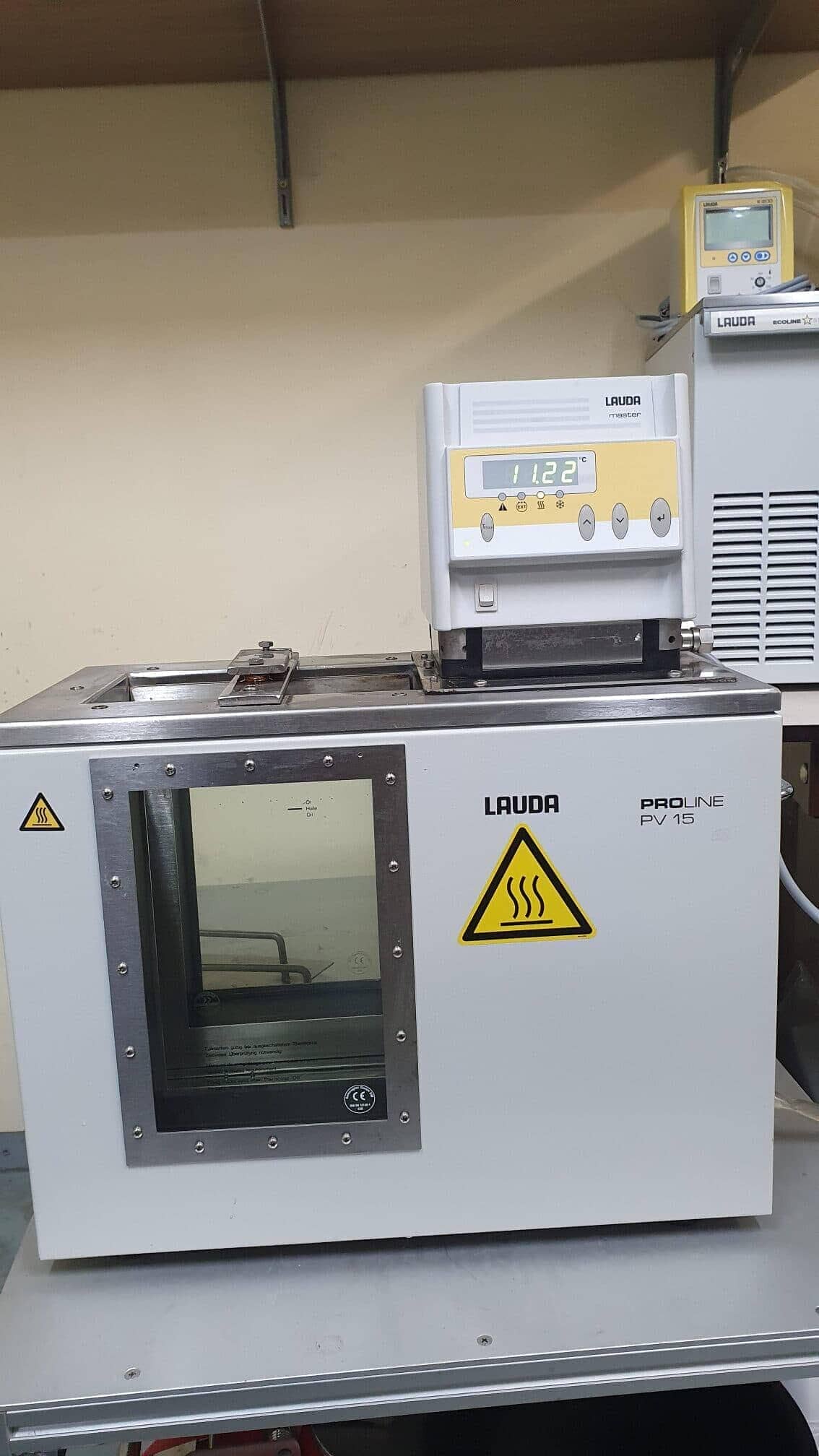

LAUDA Proline clear-view thermostats for the direct observation of the samples.

Technical Data LAUDA Proline PV 15

Working temperature min. °C 30

Working temperature max. °C 150

Ambient temperature min. °C 5

Ambient temperature max. °C 40

Temperature stability ±K 0.01

Application External and inside the bath

Heater power kW 3.50

Power consumption kW 3.60

Bath volume min. L 11

Bath volume max. L 15

Bath opening width mm 230

Bath opening depth mm 135

Bath depth mm 320

usable depth mm 285

Dimensions (WxDxH) in mm 506x282x590

Ø nipples mm 13

Pump pressure max. bar 0.80

Pump flow max. (pressure) L/min 25

Pump connection thread M16 x 1
